Our Series G2 product family is a field proven and versatile modular platform for both signal switching and distribution. Numerous digital and analog configurations and modules are available for a cost effective and compact solution.

Modules with solid-state, relay and digital technologies are utilized to provide the best cost/performance ratio in the industry. With four mainframe sizes available (2RU, 3RU, 6RU and 8RU), both large and small applications are easily met.



Features

  • Field proven reliable design
  • Four to sixteen slot mainframe sizes (2RU-8RU)
  • Touchscreen control design
  • Digital and analog application modules (DC-40GHz)
  • Variety of technology - mixed and matched
  • Front access redundant hot-swap power supplies (opt)
  • Hot-swap LXI 10/100 Ethernet port with Built-in web browser, TCP/IP, SNMP and IPv6
  • International AC power range
  • Integrated rack mount design (19 inch)
  • Built-in chassis slide mounting (slides not included)
  • Certified CE EN61010 (LVD)
  • Applications

    The Series G2 platform is designed to provide reliable signal switching and distribution for an endless number of applications. Rather than using individual components assembled in a patchwork “hobby shop” arrangement, the following installations may benefit from use of the G2 product:

  • Protocol converters
  • ENG trucks
  • Test ranges
  • Telemetry sites
  • Tracking stations
  • Satcom ground stations
  • Telecom installations
  • Signal buffering and re-generation
  • Computer room installations
  • Communication centers
  • Weapons testing centers
  • Satellite installations

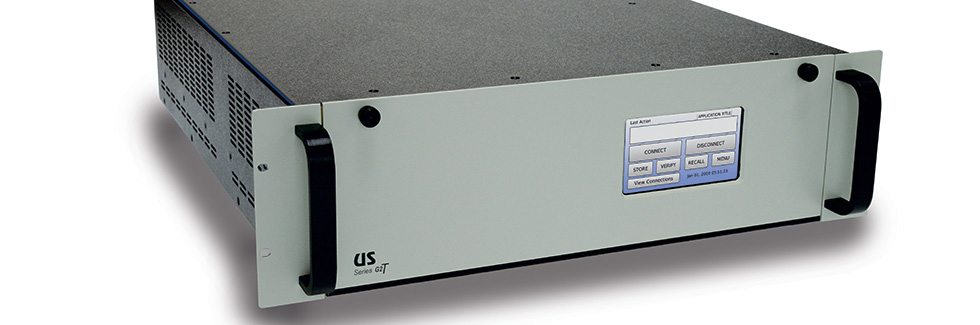

  • G2T600 mainframe analog signal distribution switch system

    Modular Analog & Digital Systems
    Solid-state, Digital and Relay Modules

    Analog and Digital Signal Distribution Linker Appogee Labs Interfacer

    Detailed Description

    Versatile and field proven, our Series G2 rack mount product line boasts numerous advanced design features, yet is is simple, compact, and cost effective. The series currently has twenty five types of standard modules, each with various configurations, giving the system designer many approaches to choose from.

    Any Series G2 module can be installed by simply sliding the module into the rear module bay of a Series G2T Mainframe. Solid-state, relay-based, digital and fiber-optic products are offered to meet most any requirement.

    The list of module types keeps growing with new products including both MxN switching arrays and 1xN types. Non-blocking (full fan-out), combining (full fan-in) and blocking arrays are available. Popular L-Band and IF switching plus fully digital types as well including PCM, TTL, E1/T1, 422, ECL, PECL and LVDS.



    Getting Started

    To get started, select the module(s) that meet your requirement, consider any future requirements, then choose the mainframe size (and features i.e. dual supplies and/or CPUs) that fits your application. To order your specific unit, you can configure your system and the factory will assign a unique system number. We simply assign you a unique "system" number used for ordering that defines a specific grouping of modules, quantities and any other distinctive parameters you may desire.

    G2 Modules

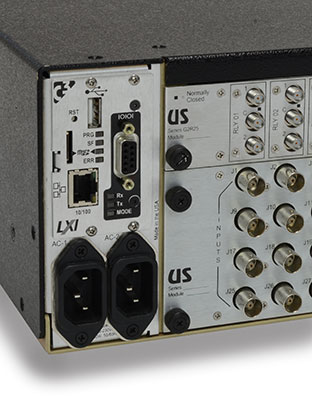

    Modules that plug-in to the Series G2T mainframes are designed to install at the rear. This makes the signal I/O connectors face the rear (inside of the rack) of your equipment enclosure. This is best suited for most installations to simplify cable routing to and from the switching system.

    The Series G2 modules span DC-40GHz to address many diverse applications including switching, distribution, audio or video, high speed digital data, telemetry, IF or RF, microwave and other types of installations. Each module occupies a given number of module “slots” within a mainframe. Some modules reside in only one slot while others occupy up to sixteen slots. Power and control for the module is supplied by the mainframe.

    Select a Module

    G2T Mainframes

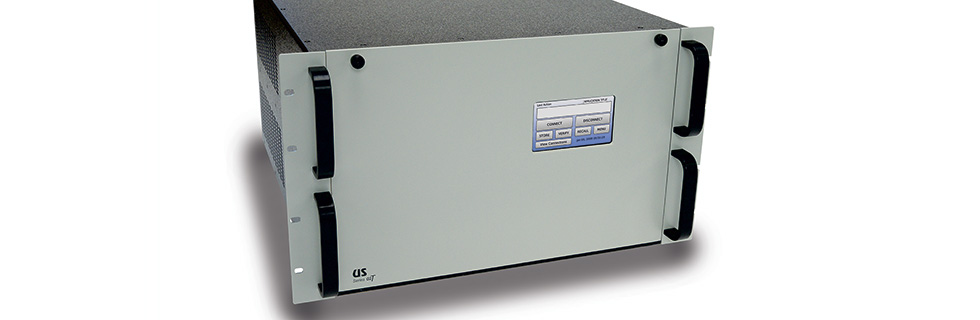

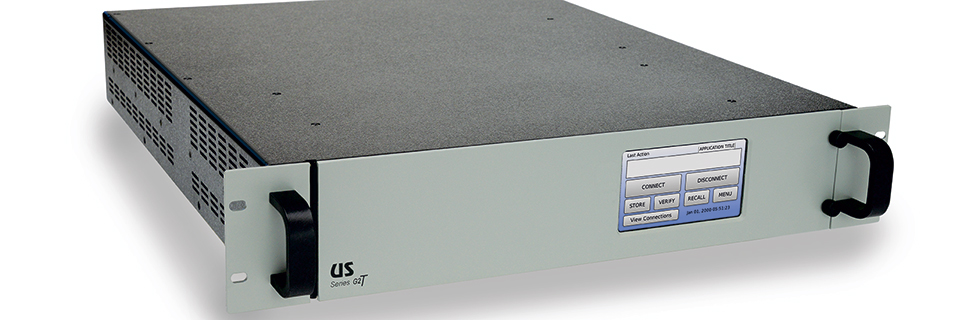

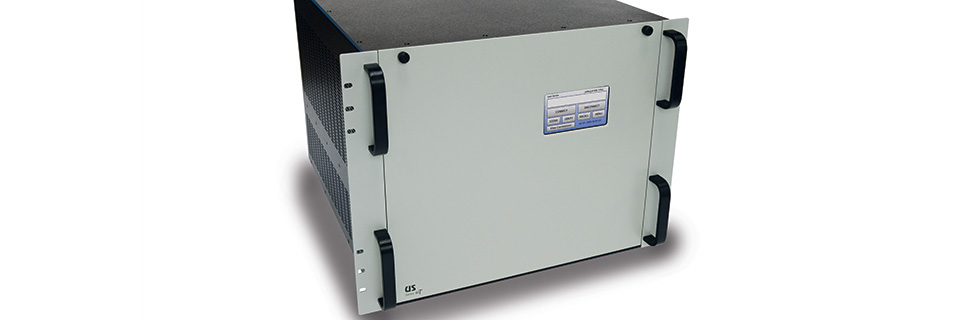

    The rack mount Series G2T "mainframes" are available in four sizes to accommodate the needs of various sized applications. They feature a front panel menu driven touchscreen, single or dual (redundant) front loading hot-swap power supplies, and single or dual (redundant) C3 Controller CPUs (6RU and 8RU units only). Standard interfaces are 10/100 Ethernet (LXI), multi-serial (RS-232C, RS-422A or RS-485), USB 2.0, or GPIB (using our GPIB-USB adapter). It should be noted that G2T units (touchscreen) supersede the original G2 mainframes (VF and keypad). The units are designed for any international AC power source.

    Select a Mainframe

    Control of Your Unit

    The G2T mainframes include the C3 Controller CPU(s). The front panel includes a touchscreen display with menu driven operation. The controls may be pass-code locked to prevent unintentional operation. One or two (redundant) CPUs includes an LXI 10/100 Ethernet port (with web browser), a USB 2.0 port, and a multi-serial port (RS-232C, RS-422A & RS-485). If needed a GPIB port can be added (using our GPIB-USB adapter). For remote control, our software package RouteWarePRO can get you up and running in just a few minutes.

    Control Software & Drivers

    Plug-in C3 Control CPU Information

    RouteWarePRO Control GUI





    What's Included

    A user defined G2 system is always assigned a factory assigned 5-digit "system" model number. The system is documented and tested using system number. Units are are delivered complete, 100% tested, and ready for installation & integration. The following items maybe included:

  • System
  • One or two 6'-foot power cords
  • Resource disc (#RDxxxxx)
  • Hardware accessory kit
  • Warranty registration card
  • Lifetime technical support
  • Free firmware updates
  •

    Care should be given to the Resource Disc as this has all documentation and instructions. Electronic copies of the Operations Manual and Programmers Guide are included, as well as RouteWarePRO control and monitoring software with a 30-Day free trial.

    Global Leader in Signal Technology

    Universal Switching Corporation is an internationally recognized leader in the signal routing industry that manufactures leading-edge switching and distribution equipment.
    Since 1992, the USC commitment to Continuous Process Improvement and cutting-edge technology has combined to provide a unique blend of low cost yet high quality products. With a corporate culture that includes a modern facility, talented personnel, a comprehensive Quality Management System and ISO 9001:2008 certification, USC provides a standard 2-Year warranty for all equipment and offers an optional extended 5-Year warranty.
