Redundancy Switching

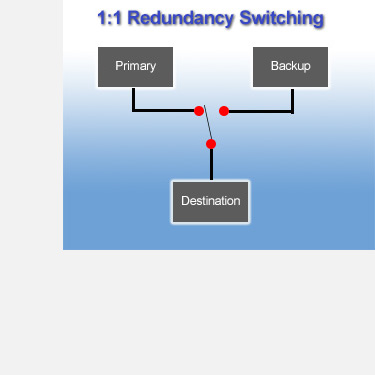

redundancy switch example Fundamentally, a redundancy switch has a 2x1 (1x2) arrangement. Critical applications require a secondary set of equipment (redundant). Automated redundancy switching is specifically designed to connect to both the primary and secondary equipment, and if there is a failure in the "primary" equipment, the backup is switched in. Some of the higher level redundancy switch units listed below automatically switch with an alarm input (10942B through 10948B), while others get remote control commands for the backup switchover.

Shown in the table below are various types of switching, but what they all have in common is that offer a 2x1 (1x2) configuration.

It should be noted that the 10942B and 10943B units (IF and L-Band respectively) also contain a unique feature to drastically reduce redundancy costs. They were designed to provide a 1:4 redundancy function as well as 1:1. What this means is that there is ONE shared piece of redundant equipment that can be switched in as backup for every FOUR primary. Further information about this is shown in the 10942B and 10943B sections.

Shown in the table below are all our various types of redundancy switching products. Use the various search features below to find what you need.




<

Model

Function
Module or
System
Signal
Type
Signal
Range


Description of Function

Minimum Config Maximum Config

Conn
Type

Unit
Size

RSX4 Redundancy
A/B

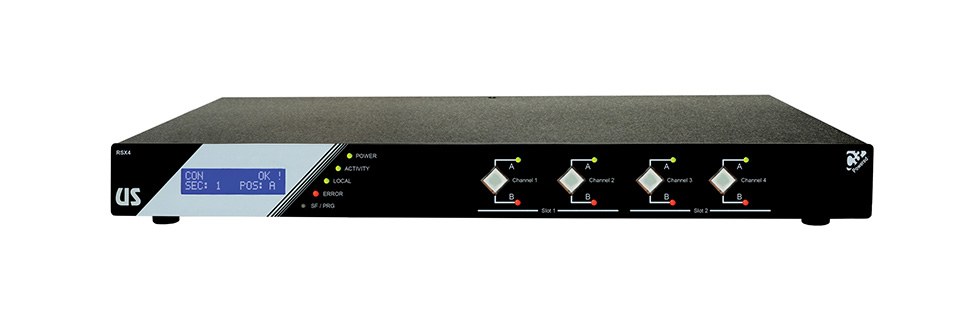

System Digital or Analog DC-18GHz Ultra reliable system with two slots for plug in elements. Unit has 1x2 and transfer configurations. 1ea 1x2 4ea 1x2

BNC
SMA

1RU RSX4 back up redundancy system 18GHz l-band s-band sma redundancy backup quad channel switch
10942B
**
Redundancy
A/B
System Digital or Analog
DC-800MHz

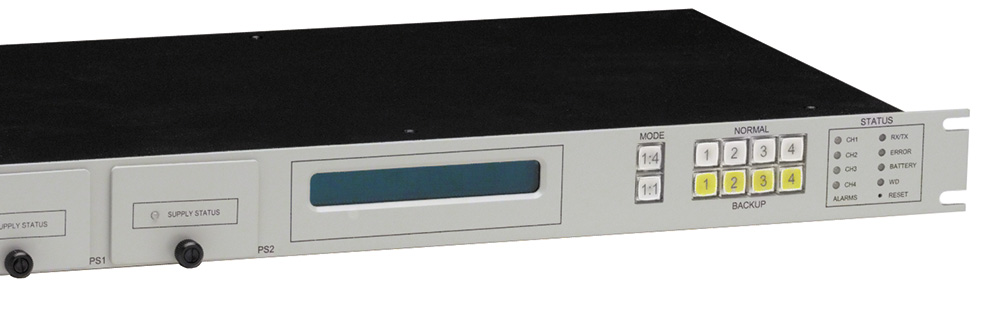

Four channel redundancy switch for IF or other signals from DC-800MHz. Includes unique 1:4 mode too.
4ea 1x2 4ea 1x2 BNC 1RU 10942B redundancy backup bnc if quad channel switch
10943B
**
Redundancy
A/B
System Digital or Analog
DC-2.4GHz
Four channel redundancy switch for L-Band, IF or other signals from DC-2.4GHz. Includes unique 1:4 mode too.
4ea 1x2 4ea 1x2 SMA 1RU 10943B l-band sma redundancy backup quad channel switch
10946B
**
Redundancy
A/B
System Digital or Analog
DC-6GHz
Four channel redundancy (or transfer) switch for L-Band, IF or other signals from DC-6GHz. Four transfer relays.
4ea 1x2 4ea 1x2 SMA 1RU 10946B wideband l-band s-band sma redundancy backup quad channel switch
10948B
**
Redundancy
A/B
System Digital or Analog
DC-18GHz
Four channel redundancy (or transfer) switch for signals from DC-18GHz. Four transfer relays.
4ea 1x2 4ea 1x2 SMA 1RU 10946B wideband 18GHz l-band s-band sma redundancy backup quad channel switch
G2R06 Redundancy
A/B
Module Analog DC-10MHz Module with up to twenty-four 1x2 2-wire general purpose relays.
6ea 1x2 24ea 1x2 DC37 1 slot G2R06 back up DC37 redundancy system multi-wire redundancy backup 16 channel switch
G2R16 Redundancy
A/B
Module Analog DC-1.3GHz Module with six 1x2 normally open coaxial relays.
6ea 1x2 6ea 1x2 BNC
SMA
1 slot G2R16 module back up redundancy system 1.3GHz sma redundancy backup coaxial switch
G2R16T Redundancy
A/B
Module Analog DC-1.3GHz Module with six 1x2 self-terminating coaxial relays.
6ea 1x2 6ea 1x2 BNC
SMA
1 slot G2R16T module terminated back up redundancy system 1.3GHz sma redundancy backup coaxial switch
G2R15 Redundancy
A/B
Module Analog DC-3GHz Module with six 1x2 normally open coaxial relays.
6ea 1x2 6ea 1x2 BNC
SMA
1 slot G2R15 module back up redundancy system 3GHz sma redundancy backup coaxial switch
G2R13 Redundancy
A/B
Module Analog DC-6GHz Module with six 1x2 normally open coaxial relays.
6ea 1x2 6ea 1x2 SMA 1 slot G2R13 module back up redundancy system 6GHz sma redundancy backup coaxial switch
G2R20 Redundancy
A/B
Module Analog DC-12GHz Module with up to six 1x2 normally open high power coaxial relays.
1ea 1x2 6ea 1x2 N-Type 4 slot G2R20 module back up redundancy system 12GHz N-Type high power redundancy backup coaxial switch
G2R17 Redundancy
A/B
Module Analog DC-18GHz Module with up to sixteen 1x2 coaxial relays. A mix of 1x2 and transfer types available. 1ea 1x2 16ea 1x2 SMA 2 slot G2R17 module back up redundancy system 18GHz SMA transfer redundancy backup coaxial switch
G2R25 Redundancy
A/B

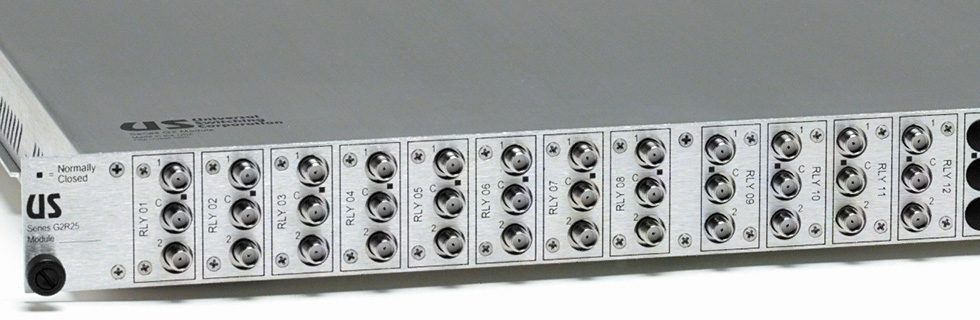

Module Analog DC-26GHz Module with up to sixteen 1x2 coaxial relays. 1ea 1x2 16ea 1x2 SMA 2 slot G2R25 module back up redundancy system 26GHz sma 16 channel redundancy backup coaxial switch
G2F90 Redundancy
A/B

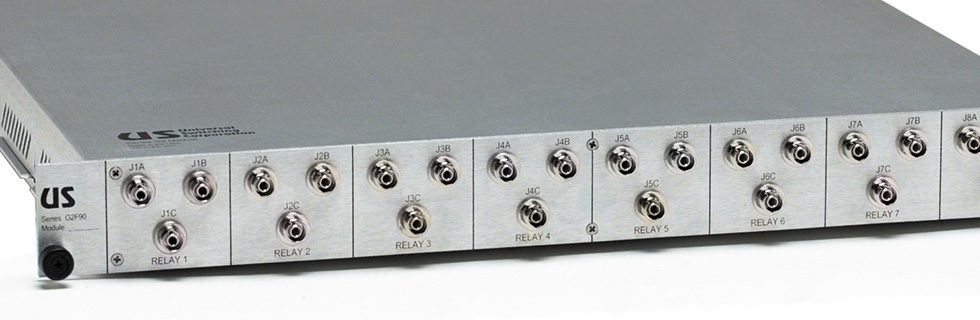

Module Fiber 1300nm-1550nm Module with up to eight 1x2 fiber optic sections. 1ea 1x2 8ea 1x2 FC, SC 2 slot
LS1601A Redundancy
A/B
System Analog DC-18GHz Modular system with a couple 1x2 relay types available. 2ea 1x2 48ea 1x2 BNC
SMA
3RU LS1601A Linker modular back up redundancy system data l-band s-band sma bnc redundancy backup channel switch
RM1X2 Redundancy
A/B

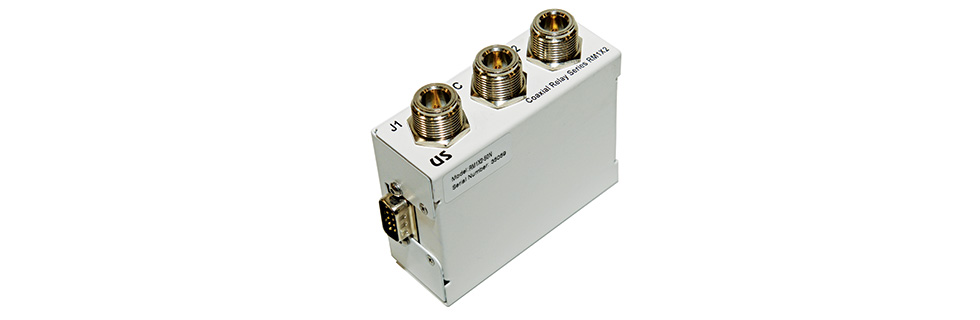

Component Analog DC-3GHz Relay module with 1x2 configuration. Available in normally open or self-terminating types. 1ea 1x2 1ea 1x2 N-Type n/a

** Not recommended for new applications. See RSX4 unit.
