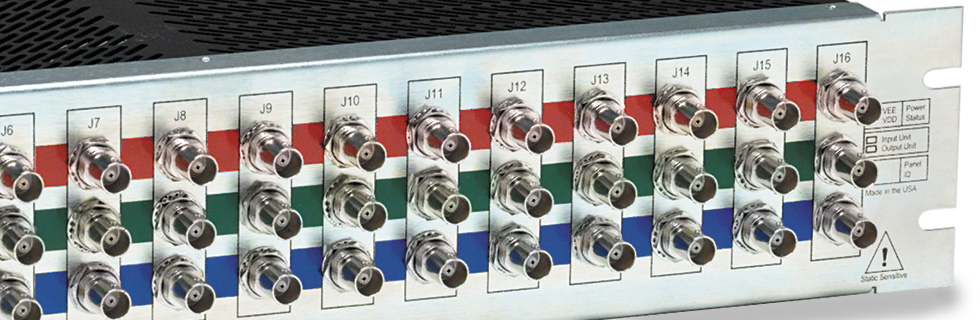

RSX4 redundancy switch a/b backup 1RU G2T400 mainframe unit AP adapter panel for S2561F RGB

Switching Products

Switching is our core competency, and was also our first product. Since that first six-level 8x8 product in 1992, we have continued to push the boundries of automated signal switching, distribution and automation.

Shown in the table below are ALL our various types of switching products.














Model or Series
Function
Module or
System
Signal
Type
Signal
Range


Description of Function

Minimum Config Maximum Config

Conn
Type

Unit
Size

1094xB
Redundancy System Digital or Analog
DC-800MHz
Five types of specific redundancy products for IF, L-Band and other applications from DC to 18GHz 4ea 1x2 4ea 1x2 BNC
SMA
1RU
G2 1xN
MxN
Redundancy
Modular System Digital or
Analog
DC-40GHz Modular switching product family to build complete systems from a variety of available module spanning DC-40GHz.
1x1 64x64 BNC
SMA
N-Type
Dsub
2RU-8RU
G2T-CAS 1xN
MxN
Redundancy
Modular System Digital or
Analog
DC-30GHz Modular switching product family to build complete systems for Critical Application Systems (CAS)
1x2 128x256 BNC
SMA
N-Type
Dsub
2RU-42RU
HDVSUx MxN System SDI Video 2970Mbps Designed for serial HD video applications, the 1RU and 2RU units provide cost effective and HD video routing. 16x16 32x32 BNC 1RU-2RU
LS1601A 1xN System Digital or Analog DC-18GHz Modular system with some 1xN switching modules available. 1x2 1x6 BNC
SMA
3RU
MS2010A MxN System Digital or Analog DC-18GHz High performance DC-18GHz coaxial matrix with low MTTR and easy to replace relay elements 4x4 12x12 SMA
N-Type
2RU
S24530A MxN System Digital DC-50Mbps Multi-level modular system for switching RS-530 data. The system can start as small as a 3x3 matrix and be expanded to a full 24x24. 3x3 24x24 Dsub 5RU
S2560F MxN System Digital or Analog DC-100MHz Differential modular system for switching instrumentation, sensors, audio, video, data and digital (TTL or '422) signals. The system can start as small as a 32x32 matrix and be expanded to a full 256x256. 32x32 512x512 BNC
Dsub
5RU
S2561F MxN System Digital or Analog >125MHz Single-ended modular system for switching instrumentation, sensors, video, data and digital (PCM, TTL) signals. The system can start as small as a 32x32 matrix and be expanded to a full 256x256. 32x32 1024x1024 BNC
Dsub
5RU
S2562E MxN System Analog DC-2MHz Single-ended modular system for switching instrumentation, sensors signals. The system can start as small as a 32x32 matrix and be expanded to a full 256x256. 32x32 512x512 BNC
Dsub
5RU
S64530 MxN System Digital DC-35Mbps Multi-level modular system for switching RS-530 data. The system can start as small as a 8x8 matrix and be expanded to a full 64x64, or 128x128 or larger with multiple units. 8x8 64x64 Dsub 5RU
RM1X2 Redundancy
A/B
Component Analog DC-3GHz Relay module with 1x2 configuration. Available in normally open or self-terminating types. 1x2 1x2 N-Type n/a
RSX4 Redundancy
A/B
System Digital or Analog DC-18GHz Ultra reliable system with two slots for plug in modules 1ea 1x2 4ea 1x2

BNC
SMA
N-Type

1RU RSX4 back up redundancy system 18GHz l-band s-band sma redundancy backup quad channel switch
SIM32 MxN System Analog 25-250MHz Modular system for switching IF signals. The system can start as small as a 4x4 matrix and be expanded to a full 32x32. 4x4 32x32 BNC 6RU
SLM16 MxN System Analog 850-2450MHz Compact system for switching L-Band signals. This fixed-sized system is factory configured as a 16x16. Available as a Fan-OUT or Fan-IN version. 16x16 16x16 BNC
SMA
1RU SLM16 or SLM16i unit
SLM24W MxN System Analog 20-3000MHz Compact 2RU system for wideband switching. This fixed-sized system is factory configured from 8x8 to 24x24. Available as a Fan-OUT or Fan-IN version. 8x8 24x24 BNC
SMA
2RU SLM24W
SLM32 MxN System Analog 850-2450MHz Modular system for switching L-Band signals. The system can start as small as a 4x4 matrix and be expanded to a full 32x32. Available as a Fan-OUT or Fan-IN version. 4x4 32x32 BNC
SMA
6RU
SLX320 MxN System Analog 850-2450MHz Modular system for switching L-Band signals. The system can start as small and be expanded to a full 64x256 available as a Fan-OUT or Fan-IN version (SLX320i) 8x8 64x256 BNC
SMA
F-Type
13RU System SLX128
VSUx MxN System Analog DC-300MHz Designed for analog video or PCM applications, the 1RU and 2RU units provide cost effective and high performance video routing. 8x8 32x32 BNC 1RU-2RU VSUx
VXI 1xN
MxN
Module Digital or Analog DC-40GHz A selection of C-Sized VXI and VME modules for digital or analog applications. 1x1 16x32 SMA
SMB
Dsub
1-5 slot
(C-Size)
