SLX128 SLX128i modular matrix 128x128 L-Band matrix system SLX128 SLX128i modular matrix 128x128 L-Band matrix system C3 Controller CPU G2T600

System
SLX128(i)

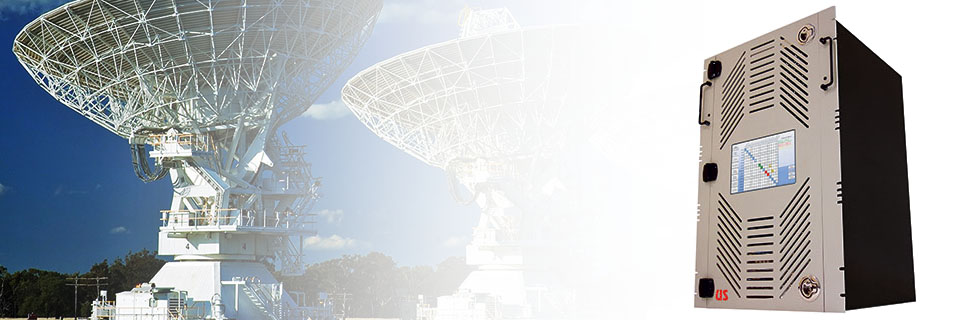

The SLX128 (950-2150MHz) is a modular L-Band switching system that can be factory configured for Fan-Out (SLX128) or Fan-In (SLX128i) signal routing, and up to 128x128 in a single 14RU unit.

Field configurable from a small 8x8 to as large as a 128x128, it designed to replace and automate a set of multi-coupler and manual patch cord bays or switches. The input and output axis can be populated independently as needed.

The unit is available in a distributive Fan-OUT version (SLX128) or a combining Fan-IN version (SLX128i). Our technical staff can help configure the exact system for your specific application. Contact us.

Features

  • High reliability GaAs switch technology
  • Individual tri-stage module design
  • Choice of SMA, BNC or F connectors
  • Full access matrix with fan-in or fan-out config
  • Expandable configuration tp 128x128, or (256x256)
  • Configurable with single or dual control CPUs
  • Remote control Ethernet, USB & serial ports
  • LXI 10/100 Ethernet includes TCP/IP, SNMP, IPv6
  • Command set is 488.2 compliant
  • Built-in web browser capability
  • Includes RouteWarePRO software
  • High brightness 10.1" touchscreen
  • Optional variable gain (programmable)
  • Rugged 14RU high chassis
  • International AC power range
  • Self-monitoring hot-swap plug-in power supplies
  • Integrated rack mount design (19 inch)
  • Built-in chassis slide mounting (slides not included)
  • Certified CE EN61010 (LVD)
  • Applications

    Our SLX128 is designed to automate connectivity of
    L-Band signals in applications such as ground stations.

    Rather than using patch cords and multi-couplers, the following installations may benefit from use of this product:

  • Satellite ground stations
  • Uplink or downlink control signals
  • Teleport and last mile installations
  • Communication centers
  • Satellite installations
  • Specialized security installations
  • Modem Tx and Rx connectivity and encryption

  • S24530 digital pin assignment DCE and DTE matrix system

    Similar Products

    L-Band Modular 128x128 Switching System
    Fan-OUT or Fan-IN: 950-2150MHz (850-2450 ext)

    SLM32 block diagram L-band matrix system

    Detailed Description

    Eliminating a rats-nest of multi-couplers, manual patch bays and patch cords, the System SLX128 is a solid-state modular switch array specifically designed for routing L-Band signals. Fully populated, the unit provides 128 input ports and 128 output ports. Other configurations are possible. Contact the factory.

    The 14U rack mount unit can be populated with tr-stage cards for the full configuration, or reduced configurations. All cards are secured within the unit for rugged and trouble free operation.

    The front panel includes our 10.1" Option X touchscreen display with menu driven operation as a standard item. The screen may be pass-code locked to prevent unintentional operation. The unit can be configured with one or two (full redundant) hot-swappable plug-in control CPUs.

    Each CPU includes an LXI 10/100 Ethernet port (with web browser), a USB 2.0 port, and a muli-serial port (RS-232C, RS-422A & RS-485). Self-monitoring hot-swap plug-in power supplies are standard with an independent and redundant design. The unit has independent dual AC power inputs designed for any international AC power source. This unit includes our RouteWarePRO control software.

    Control Software & Drivers

    Plug-in C3 Control CPU Information

    RouteWarePRO Control GUI



    What's Included

    The SLX128 units are delivered complete, 100% tested, and ready for installation & integration. The following items are included:

  • System SLX128
  • Two 6'-foot power cords
  • Resource disc (#RDSLX128)
  • Hardware accessory kit
  • Warranty registration card
  • Free lifetime technical support
  • Free lifetime firmware updates
  •

    Two power cords are provided as the unit comes standard with redundant (and independent) power supplies. Care should be given to the Resource Disc as this has all documentation and instructions. Electronic copies of the Operations Manual and Programmers Guide are included, as well as RouteWarePRO control and monitoring software with a 30-Day free trial.
