Model VSUx & HDVSUx

Compact and feature rich, the low cost VSUx (analog) and HDVSUx (digital) video routers are available in a variety of popular configurations from 8x24 to 32x32.

Originally designed to replace manual patch cord bays and distribution amplifiers, these units provide automated switching for digital or analog video signals. The analog VSUx "H" version is for higher level signals such as IRIG-B, PCM, TTL, clock & data, IF-video, or other similar signal that might be found on a test range. Units are only 1RU or 2RU high and are turn-key out of the box for quick and easy integration.

Features

  • High reliability solid-state core technology
  • HD SDI digital and analog signal versions
  • Full access matrix with 1:1 connection or full fan-out
  • Built-in web browser
  • Remote control Ethernet, USB & serial ports
  • LXI 10/100 Ethernet includes TCP/IP, SNMP, IPv6
  • Command set is 488.2 compliant
  • Front panel LED back-lit keys
  • High contrast super-twist LCD display
  • Rugged 1RU or 2RU high chassis
  • International AC power range
  • Optional DC power can be specified
  • Integrated rack mount design (19 inch)
  • Built-in chassis slide mounting (slides not included)
  • Certified CE EN61010 (LVD)
  • Applications

    The VSUx and HDVSUx are designed to automate connectivity of equipment with single-ended analog or digital signals.

    Rather than using patch cords, distribution amplifiers and multi-couplers, the following installations may benefit from use of this product:

  • Studios and TV stations
  • ENG trucks
  • Test ranges
  • Flight simulators
  • Telemetry sites
  • Tracking stations
  • Satcom ground stations
  • Telecom installations
  • Survivability labs
  • Computer room installations
  • Communication centers
  • Weapons testing centers
  • Satellite installations

  •  digital sdi analog video switch matrix signal

    Similar Products

    Analog (VSUx) & Digital (HDVSUx) Video Switches
    TTL, PCM, Composite, RGB, SDI, HDSDI Video

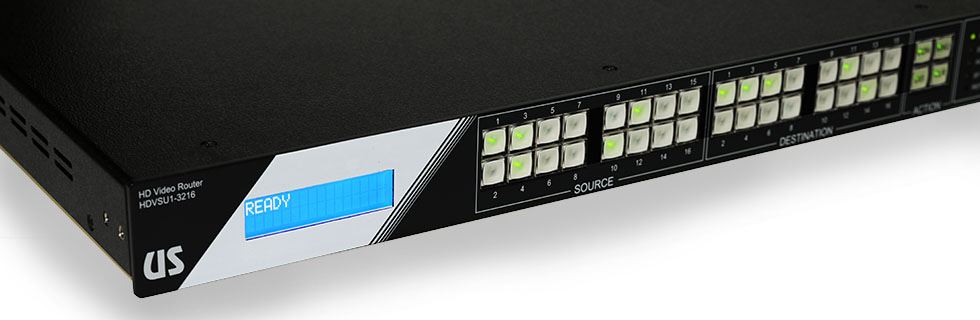

    HDVSU1 video switch matrix router

    Detailed Description

    Eliminating manual patch bays, cords and distribution amplifiers, our family of compact video routers provide a high-density switch array alternative. Specifically designed for routing digital and analog signals (such as HDSDI, 4K, composite, IRIG-B, PCM, TTL, clock & data, 70MHz IF-video, or other similar signals) these quality cost effective units are ready out of the box.

    A full array of LED illuminated keys are provided for quick control, or to view connections. Keys can be easily removed in the field to add custom user labels. A super-twist LSD display provides menu and command status of the units. Built-in serial and Ethernet ports provide remote access and control for automating your signal connections. For popular connection schemes, you can also store and recall your own popular connectivity layouts. The built-in web browser provides easy setup and control without any additional software, or the unit comes with a 30-day trial of RouteWarePRO.

    The rugged all aluminum 1RU and 2RU designs are convection cooled and maintenance free with rack mounting ears integral to the mechanical design. All signal connectors and control ports are rear facing. The front panel controls may be pass-code locked to prevent unintentional operation. The units include an LXI 10/100 Ethernet port (with web browser), and a muli-serial port (RS-232C, RS-422A & RS-485).

    Configurations



    Model Elements Max Freq Inputs Outputs Conn Size
    HDVSU1-3216 Digital 2970Mbps
    SD & HD-SDI
    16 16 BNC-75 1RU HDVSU1-3216 digital sdi video switch matrix router
    HDVSU2-6432 Digital 2970Mbps
    SD & HD-SDI
    32 32 BNC-75 2RU HDVSU2-6432 digital sdi video switch matrix router

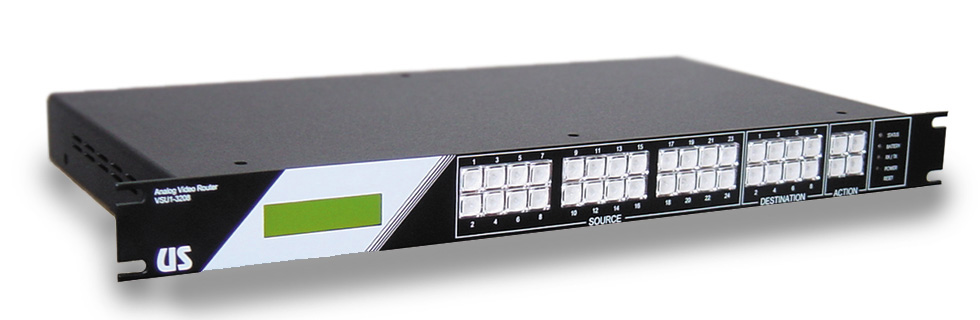

    VSU1-3208 Analog 300MHz 24 8 BNC-75 1RU VSU1-3208 analog video switch matrix router
    VSU1-3216 Analog 300MHz 16 16 BNC-75 1RU VSU1-3216 analog video switch matrix router
    VSU1-3224 Analog 300MHz 8 24 BNC-75 1RU VSU1-3224 analog video switch matrix router

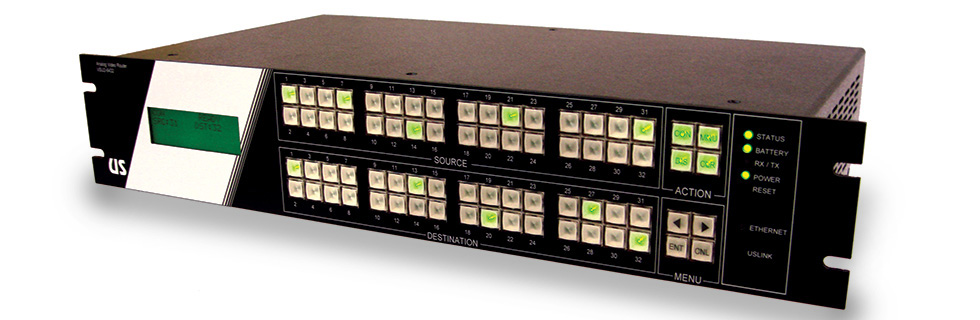

    VSU2-6432 Analog 300MHz 32 32 BNC-75 2RU VSU2-6432 analog video switch matrix router
    VSU1H-3208 High Level Analog 75MHz 24 8 BNC-75 1RU VSU1H-3208 PCM TTL analog video switch matrix router
    VSU1H-3216 High Level Analog 75MHz 16 16 BNC-75 1RU VSU1H-3216 PCM TTL analog video switch matrix router
    VSU1H-3224 High Level Analog 75MHz 8 24 BNC-75 1RU VSU1H-3224 PCM TTL analog video switch matrix router
    VSU2H-6432 High Level Analog 75MHz 32 32 BNC-75 2RU VSU2H-6432 32x32 PCM TTL analog video switch matrix router
    VSU1-3208-50 Analog 300MHz 24 8 BNC-50 1RU VSU1-3208-50 analog video switch matrix router
    VSU1-3216-50 Analog 300MHz 16 16 BNC-50 1RU VSU1-3216-50 analog video switch matrix router
    VSU1-3224-50 Analog 300MHz 8 24 BNC-50 1RU VSU1-3224-50 analog video switch matrix router
    VSU2-6432-50 Analog 300MHz 32 32 BNC-50 2RU VSU2-6432-50 analog video switch matrix router

    Control Software & Drivers







    What's Included

    The VSUx and HDVSUx units are delivered complete, 100% tested, and ready for installation & integration. The following items are included:

  • System
  • One (or 2) 6'-foot power cord
  • Resource disc (#RDVSUx or #RDHDVSUx)
  • Hardware accessory kit
  • Warranty registration card
  • Lifetime technical support
  • Free firmware updates
  •

    Care should be given to the Resource Disc as this has all documentation and instructions. Electronic copies of the Operations Manual and Programmers Guide are included, as well as RouteWarePRO control and monitoring software with a 30-Day free trial.
