G2 Module Selector

G2T mainframe with mixed modules rear viewSince our Series G2 was originally introduced, new modules and continuous product refinements have been made. The Series G2 modules listed below encompass our latest standard model with some very exciting performance features and capabilities. They feature hot-swap capability and are compatible with our advanced touchscreen G2T Mainframes.

The G2 Modules install at the rear of a mainframe so signal connectors face the inside of your equipment rack . The rack mount Series G2T "mainframes" are available in four sizes to accommodate the needs of various sized applications. They feature a front panel menu driven touchscreen, single or dual (redundant) front loading hot-swap power supplies, and single or dual (redundant) C3 Controller CPUs (6RU and 8RU units only). Standard interfaces are 10/100 Ethernet (LXI), multi-serial (RS-232C, RS-422A or RS-485), USB 2.0, or GPIB (using our GPIB-USB adapter). The units are designed for any international AC power source.

NOTE: The G2T units (touchscreen) supersede the original G2 mainframes (VF and keypad).

Go to 1xN Modules
Go to MxN Modules
Series G2 Product Page
Series G2T Mainframes
G2T Programmers Guide (Rev A) PDF

MxN Configurations (sorted by freq)




Model		 Switching Elements Frequency Range Crosstalk Isolation
Impedance
Description
of Function
 Minimum Config Maximum Config

Conn
Type

 Module
Slots
G2S02
 Solid-State DC-500kHz >70dB @ 100kHz Balanced 100, 300, 600 or 50k General purpose true differential solid-state non-blocking full fanout analog array for distribution and routing of audio or telemetry signals
 16 in
16 out		 64 in
64 out		 DC-37 1-2 g2s02 audio differential analog 64x64 matrix module
G2R10
 Relay DC-10MHz
(typical)		 >45dB @ 10MHz Balanced
2-wire 		General purpose relay-based array with bi-directional DC signal path suitable for ATE 4 in
4 out		 16 in
16 out		 DC-37 1 g2r10 relay matrix module 16x16 two wire
G2S11 Solid-State T1 & E1 rates n/a 100 ohm balanced Transformer coupled differential array for distribution and routing T1 or E1 data signals 8 in
8 out		 16 in
16 out		 RJ45 3 g2s11 t1 e1 data matrix module
G2D62B Digital DC-50Mbps n/a 100 ohm balanced Differential 422 digital I/O with full fanout capability, 100 ohm impedance -Triax 8 in
8 out		 64 in
64 out		 Triax
BJ77		 1-8 g2d62 differential 422 data matrix module bj77 triax 32x32 16x16 64x64
G2D64B Digital DC-50Mbps n/a 100 ohm balanced Differential 422 digital I/O with full fanout capability, 100 ohm impedance, multipin 32 in
32 out		 64 in
64 out		 DC-37 1-2 g2d64 g2d64b differential 422 data matrix module 32x32 64x64
G2D71 Digital >100Mbps n/a 50 ohm differential True differential digital LVDS inputs, differential ECL outputs with full fanout capability 8 in
8 out		 64 in
64 out		 SMB 2-8 g2d71 lvds ecl matrix digital module 64x64
G2D72 Digital >100Mbps n/a 50 ohm differential True differential LVDS digital  inputs and outputs with full fanout capability 8 in
8 out		 64 in
64 out		 SMB 2-8 g2d72 lvds matrix digital module 64x64
G2S32H Solid-State DC-75MHz 60dB @ 10MHz 50 or 75 Single-ended general purpose HIGH LEVEL analog array for TTL, PCM or other high level analog signals 75 ohm, or 50 ohm 8 in
8 out		 64 in
64 out		 BNC 1-8 g2s32h high level matrix solid-state 75mhz ttl pcm analog module 32x32 64x64

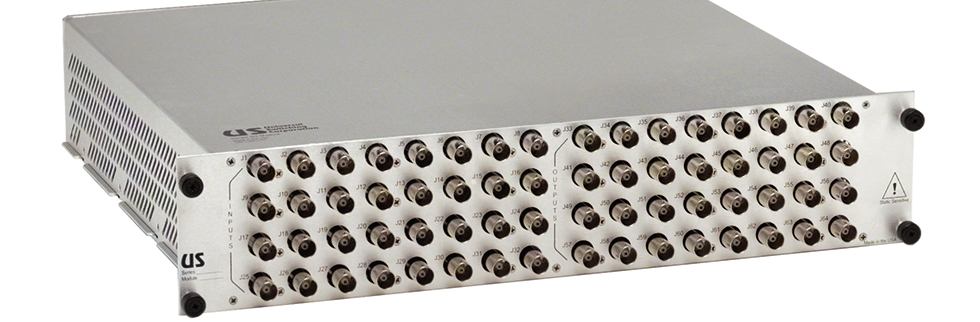

G2S32 Solid-State DC-125MHz 40dB @ 125MHz 50 or 75 Single-ended general purpose analog video array for RGB signals 75 ohm or 50 ohm 8 in
8 out		 64 in
64 out		 BNC 1-8 g2s32 video 125mhz matrix router switch solid-state ttl pcm analog module 32x32 64x64
G2S33 Solid-State DC-160MHz 40dB @ 125MHz 50 or 75 Single-ended general purpose analog video array for RGB signals 75 ohm 8 in
8 out		 64 in
64 out		 BNC 1-8 g2s33 video 160mhz matrix switch router solid-state ttl pcm analog module 32x32 64x64
G2S44 Solid-State 20-250MHz 60dB @ 70MHz 50 or 75 Single-ended non-blocking full fanout array for high performance IF routing without any looping ports, 50 or 75 ohm 8 in
8 out		 32 in
48 out		 BNC 4-6 g2s44 if 70mhz 160mhz matrix switch fan out non-blocking router solid-state low noise analog module 32x32 16x16

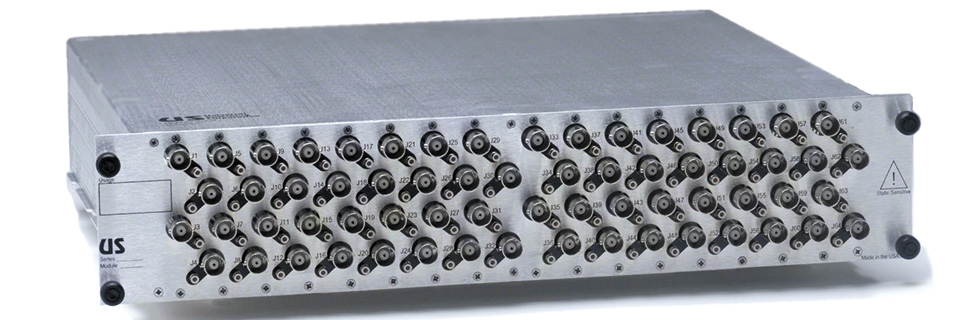

G2S47 Solid-State 20-250MHz 60dB @ 70MHz 50 or 75 Single-ended non-blocking full fanout array for high performance IF routing, includes both input and output looping ports, 50 or 75 ohm 8 in
8 out		 32 in
48 out		 BNC 4-6 g2s47 if 70mhz 160mhz matrix fan out non-blocking switch expandable router solid-state low noise analog module 32x32 16x16
G2S48 Solid-State 20-250MHz 60dB @ 70MHz 50 or 75 Single-ended non-blocking full fanout array for high performance IF routing, includes output looping ports, 50 or 75 ohm 8 in
8 out		 32 in
48 out		 BNC 4-6 g2s48 if 70mhz 160mhz fan out non-blocking matrix switch router solid-state low noise analog module 32x32 16x16
G2S54 Solid-State 20-250MHz 60dB @ 70MHz 50 or 75 Single-ended full fan-in combiner array for high performance IF routing without any looping ports, 50 or 75 ohm 8 in
8 out		 48 in
32 out		 BNC 4-6 g2s54 if 70mhz 160mhz combiner fan-in matrix switch router solid-state low noise analog module 32x32 16x16
G2S57 Solid-State 20-250MHz 60dB @ 70MHz 50 or 75 Single-ended full fan-in combiner array for high performance IF routing with input and output looping ports, 50 or 75 ohm 8 in
8 out		 48 in
32 out		 BNC 4-6 g2s57 if 70mhz 160mhz combiner fan-in matrix looping ports switch router solid-state low noise analog module 32x32 16x16
G2S58 Solid-State 20-250MHz 60dB @ 70MHz 50 or 75 Single-ended full fan-in combiner array for high performance IF routing, includes output looping ports, 50 or 75 ohm 8 in
8 out		 48 in
32 out		 BNC 4-6 g2s58 if 70mhz 160mhz combiner fan-in matrix looping ports switch router solid-state low noise analog module 32x32 16x16
G2D70A Digital >600Mbps n/a 50 ohm differential True differential ECL digital inputs, differential ECL outputs with full fanout capability. Singled-ended available 8 in
8 out		 64 in
64 out		 SMA
SMB		 2-16 g2d70 digital differential ecl matrix switchy router solid-state 32x32 16x16
G2S42 Solid-State 20-1000MHz 50dB @ 1000MHz 50 High performance RF matrix with non-blocking full fanout capability or combining capability (with or without integrated amplifiers) 8 in
8 out		 12 in
16 out		 SMA
BNC		 4 g2s42 if wideband fan out non-blocking matrix switch router solid-state low noise analog module 32x32 16x16
G2S75 Solid-State 800-2400MHz 50dB @ 2400MHz 50 High performance RF matrix with non-blocking full fanout capability or combining capability (with or without integrated amplifiers) 8 in
8 out		 32 in
32 out		 SMA
N-Type		 4-12 g2s75 if l-band 2450mhz 70mhz 160mhz fan out non-blocking matrix switch router solid-state low noise analog module 32x32 16x16
G2S75X Solid-State 150-3000MHz 45dB @ 2400MHz 50 High performance RF matrix with non-blocking full fanout capability or combining capability (with or without integrated amplifiers) 8 in
8 out		 32 in
32 out		 SMA
N-Type		 4-12 g2s75x if l-band 2450mhz 70mhz 160mhz fan out non-blocking matrix switch router solid-state low noise analog module 32x32 16x16
G2S78 Solid-State 20-3000MHz 50dB @ 2400MHz 50 High performance RF matrix with non-blocking full fanout capability with integrated amplifiers 8 in
4 out		 16 in
16 out		 SMA
N-Type		 3-6 g2s78 if l-band 2450mhz 70mhz 160mhz fan out non-blocking matrix switch router solid-state low noise analog module 32x32 16x16
G2R19A Relay DC-18GHz 60dB @ 18GHz 50 High performance microwave "blocking" bi-directional matrix capability, totally passive signal path. Optional terminations 4 in
2 out		 10 in
10 out		 SMA
N-Type		 4-8 g2s19a if l-band 18ghz non-blocking matrix switch router microwave low noise analog module crossbar



1xN Configurations (sorted by freq)




Model		 Switching Elements Frequency Range Crosstalk Isolation
Impedance
Description
of Function
 Minimum Config Maximum Config

Conn
Type

 Module
Slots

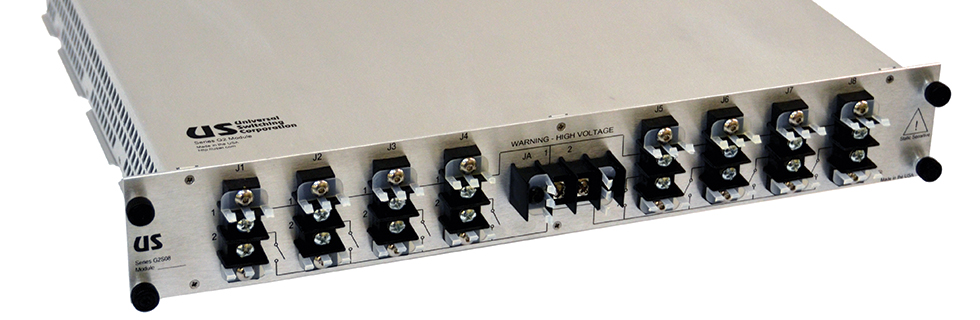

G2S08
 Solid-State DC-440Hz n/a n/a High current bi-directional power switching AC or DC up to 30 amps
 1x1 1 in
8 out		 Screw Terminal 3 g2s08 power 25amp switch dc ac module solid-state
G2R04 Relay DC-10MHz
(typical)		 >50dB @ 10MHz 8-wire 1x4 general purpuse switch for switching a DB25 with 8 wires 1x4
8-wire		 1x4
8-wire		 DC-25 1 g2r08 rs232 db25 relay selector switch module
G2R06-1
G2R06-2
G2R06-3		 Relay DC-10MHz >60dB @ 10MHz Balance
2-wire 		Two-wire general purpose passive switching for ATE, audio or DC power - 3 basic versions 1x1 1x16 DC-37 1 g2r06 general purpose switch 1x16 two wire relay dpdt module

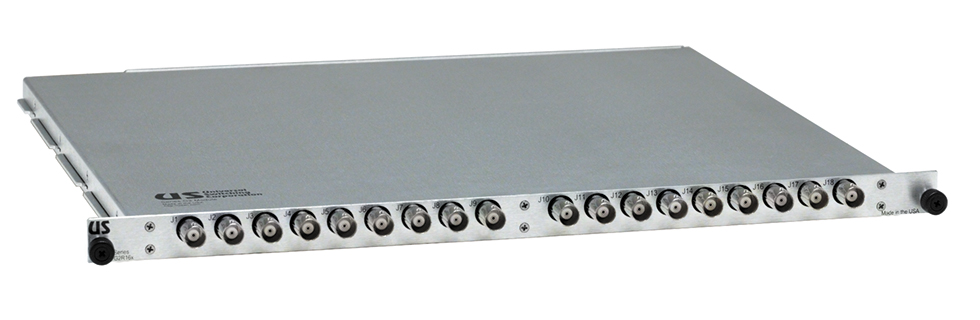

G2R16 Relay DC-1.3GHz >55dB @ 1GHz 50 or 75 ohm Coaxial switching module with normally open contacts, 50 or 75 ohm (BNC, SMA or TNC connectors available) Six 1x2 One 1x16 BNC
SMA
TNC		 1 g2r16 coaxial relay module 1xn high isolation normally open
G2R16T Relay DC-1.3GHz >55dB @ 1GHz 50 or 75 ohm Coaxial switching module with self-terminating contacts, 50 or 75 ohm (BNC, SMA or TNC connectors available) Six 1x2 One 1x16 BNC
SMA
TNC		 1 g2r16t coaxial relay module 1xn high isolation self terminating
G2R15 Relay DC-3GHz >60dB @ 1GHz 50 ohm Coaxial switching module with or without self-terminating contacts, (BNC or SMA connectors) Six 1x2 One 1x16 BNC
SMA
 1 g2r15 coaxial relay module 1xn high isolation normally open
G2R13 Relay DC-6GHz >55dB @ 3GHz 50 ohm Coaxial switching module with normally open (not self-terminating) contacts, (SMA connectors) Six 1x2 Two 1x8 SMA 1 g2r13 3ghz l-band coaxial relay module 1xn high isolation normally open
G2R20 Relay DC-12GHz >80dB @ 4GHz 50 ohm Coaxial switching module, normally open, high power with N-type connectors One 1x2 Six 1x2
and
Two 1x6		 N-Type 4 g2r20 spdt coaxial 12ghz relay module high power sp6t backup redundant n-type
G2R12 Relay DC-12GHz >80dB @ 4GHz 50 ohm Coaxial switching module, normally open, high power with N-type connectors One 1x3 Five 1x6 N-Type 4 g2r12 coaxial relay module 12ghz high power sp6t backup redundant n-type
G2R14 Relay DC-18GHz >60dB @ 18GHz 50 ohm Coaxial switching module with self-terminating (3W) contacts One 1x3 Six 1x6 SMA 3 g2r14 coaxial relay module 18ghz self-terminating sp6t 1xn sma
G2R17 Relay DC-18GHz >60dB @ 18GHz 50 ohm Coaxial switching module normally open contacts, combinations of tranfser or 1x2 One Transfer Eight Transfer SMA 2 g2r17 coaxial transfer sp6t relay module 18ghz self-terminating backup 1xn sma
G2R18 Relay DC-18GHz >60dB @ 18GHz 50 ohm Coaxial switching module with normally open contacts One 1x6 Seven 1x6 SMA 3 g2r18 coaxial sp6t relay module 18ghz normally open 1xn sma
G2R22 Relay DC-18GHz >60dB @ 18GHz 50 ohm Coaxial switching module with normally open contacts (small format) One 1x6 Ten 1x6 SMA 2 g2r22 coaxial sp6t relay module 18ghz normally open 1xn sma
G2R27 Relay DC-18GHz >60dB @ 18GHz 50 ohm Coaxial switching module with self-terminating (3W) contacts One 1x8 Four 1x10 SMA 5 g2r27 coaxial transfer sp8t sp10t relay module 18ghz normally open 1xn sma
G2R28 Relay DC-18GHz >60dB @ 18GHz 50 ohm Coaxial switching module with normally open contacts One 1x8 Six
1x10		 SMA 3 g2r28 coaxial transfer sp8t sp10t relay module 18ghz normally open 1xn sma
G2R25 Relay DC-26GHz >55dB @ 26GHz 50 ohm Coaxial switching module with normally open contacts Four 1x2 Sixteen 1x2 SMA 2 g2r27 coaxial transfer spdt 1x2 relay module 18ghz 26ghz normally open 1xn sma

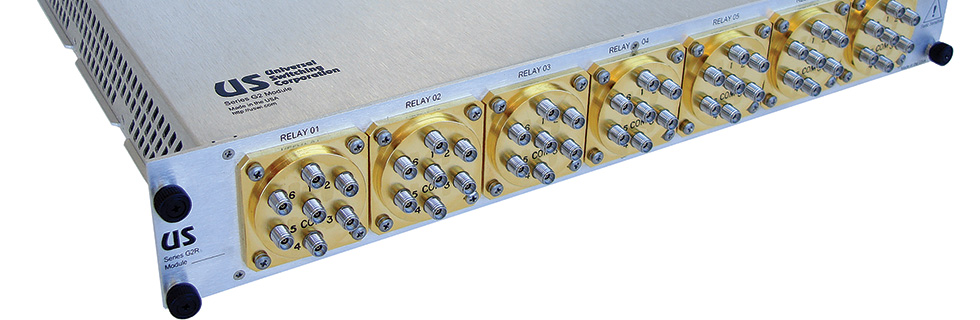

G2R40 Relay DC-40GHz >55dB @ 40GHz 50 ohm Coaxial switching module with normally open contacts One 1x3 Seven 1x6 K-Type 3 g2r40 coaxial transfer sp6t relay module 40ghz normally open 1xn k-type
G2F90 Mems 1300-1500nm >50dB n/a Multiple latching MEMs 1x2 fiber elements, up to eight sections One 1x2 Eight 1x2 SC, FC 4 g2f90 fiber backup spdt relay module
