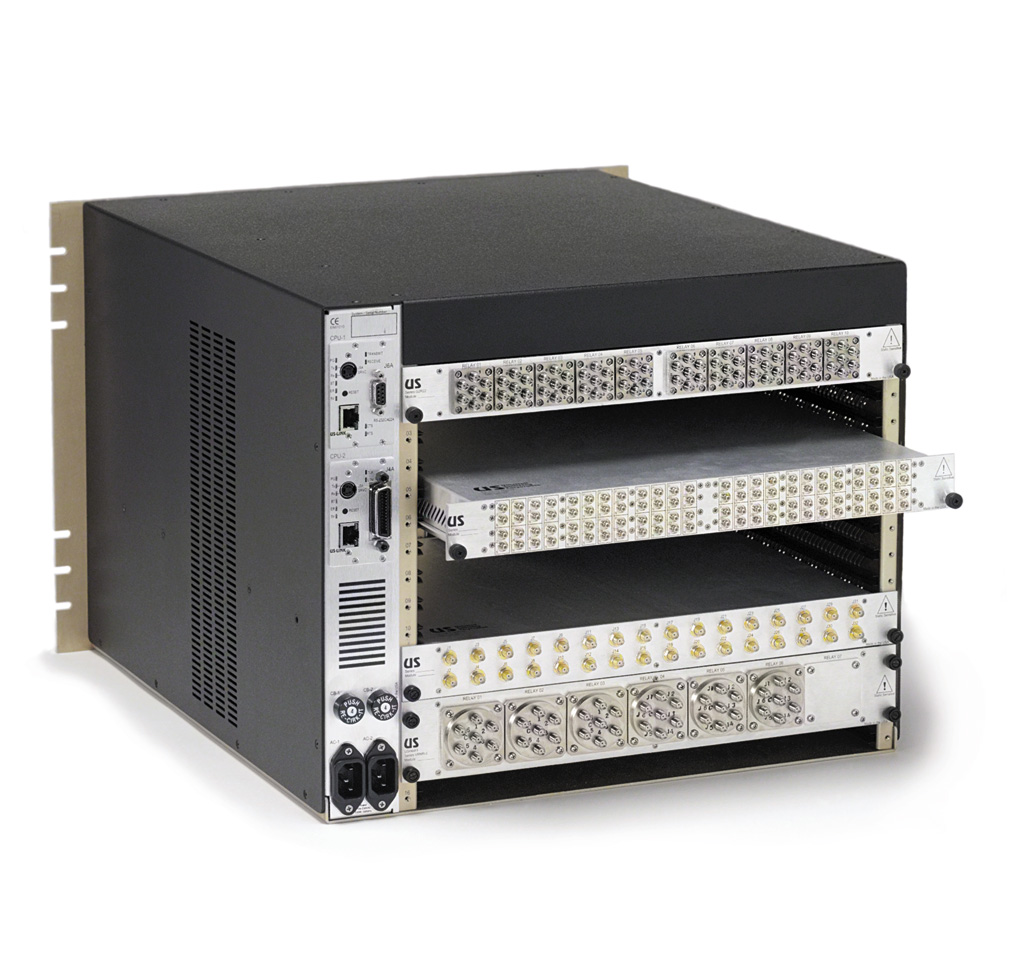

Series G2
MxN Switching Products (matrices)

The product selection table below offers an easy way to select which switch matrix product might be used for your particular application. Please keep in mind that our Series G2 is being expanded monthly with new module types, and that we also do custom or modified types as well.

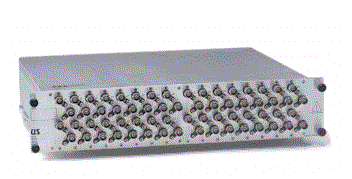

Solid-state G2S47 Switching Module with a
32x32 IF switching configuration, plus input
and output looping port for expanding to
additional modules, 20-300MHz

NOTE:
The type of switching technology is identified by a letter following the "G2" portion of the series number. Relay-based technology is G2R, solid-state technology is G2S, fiber optic technology is G2F, and digital products are specified with G2D.



Question: What are MxN Switching Modules?

MxN Modules (matrices)
Sorted by increased frequency range.



Type

Spec
Sheet

Module
Slot
Height

Frequency Range

Connector
Type

Switching
Array Type

Description

G2S02 Download PDF file 1- 2 DC-100kHz  D-Sub Differential audio or telemetry, from 16x16 to 64x64 True differential solid-state non-blocking full fanout analog array for distribution and routing of audio or telemetry signals
G2R10 Download PDF file 1 DC-10MHz  D-Sub Differential (2-wire) general purpose, from 8x2 to 16x16 A general purpose relay-based array with bi-directional DC signal path suitable for ATE
G2S11 Download PDF file 3 T1 or E1  RJ-45 Unidirectional T1 or E1 switch matrix,
8x8 to 16x16
Transformer coupled differential array for distribution and routing T1 or E1 data signals
G2D62 Download PDF file 1- 8 DC-30Mbps Triax Differential '422 data matrix switch, from 8x8 to 64x64 True differential digital I/O with full fanout capability, 100 ohm impedance -Triax
G2D64B Download PDF file 1-2 DC-50Mbps D-Sub Differential '422 data matrix switch, from 32x32 to 64x64 True differential digital I/O with full fanout capability, 100 ohm impedance, multipin
G2D71 NA 2-8 >100Mbps SMB Differential LVDS to ECL data matrix switch, from 8x8 to 64x64 True differential digital LVDS inputs, differential ECL outputs with full fanout capability
G2D72 NA 2-8 >100Mbps SMB Differential LVDS data matrix switch, from 8x8 to 64x64 True differential LVDS digital  inputs and outputs with full fanout capability
G2S32H Download PDF file 1-8 DC-75MHz BNC High level switching array, from
8x8 to 64x64
Single-ended general purpose HIGH LEVEL analog array for TTL, PCM or other high level analog signals 75 ohm, or 50 ohm
G2S32 Download PDF file 1-8 DC-125MHz BNC Video or telemetry switching array, from
8x8 to 64x64
Single-ended general purpose analog video array for RGB signals 75 ohm or 50 ohm
G2S33 Download PDF file 1-4 DC-160MHz BNC Video or telemetry switching array, from
4x2 to 32x32
Single-ended general purpose analog video array for RGB signals 75 ohm
G2S44 Download PDF file 4-6 20-250MHz BNC High performance IF switching array, from
8x8 to 48x48
Single-ended non-blocking full fanout array for high performance IF routing without any looping ports, 50 or 75 ohm
G2S47 Download PDF file 4-6 20-250MHz BNC High performance IF switching array, from
8x8 to 48x48
Single-ended non-blocking full fanout array for high performance IF routing, includes both input and output looping ports, 50 or 75 ohm
G2S48 Download PDF file 4-6 20-250MHz BNC High performance IF switching array, from
8x8 to 48x48
Single-ended non-blocking full fanout array for high performance IF routing, includes output looping ports, 50 or 75 ohm
G2S54 NA 4-6 20-250MHz BNC High performance IF switching array, from
8x8 to 48x48
Single-ended full input combiner array for high performance IF routing without any looping ports, 50 or 75 ohm
G2S57 NA 4-6 20-250MHz BNC High performance IF switching array, from
8x8 to 32x32
Single-ended full input combiner array for high performance IF routing without any looping ports, 50 or 75 ohm
G2S58 NA 4-6 20-250MHz BNC High performance IF switching array, from
8x8 to 48x48
Single-ended full input combiner array for high performance IF routing, includes output looping ports, 50 or 75 ohm
G2D70 Download PDF file 2-16 >400Mbps SMA, SMB or BNC Differential ECL data matrix switch, from
8x8 to 64x64
True differential ECL digital inputs, differential ECL outputs with full fanout capability. Singled-ended available.
G2S75 Download PDF file 4-8 800-2400MHz SMA or
N-Type
Single-ended RF matrix switch, from
4x8 to 8x48
High performance RF matrix with non-blocking  full fanout capability or combining capability (with or without integrated amplifiers)
G2S75X NA 4 150-3000MHz SMA Single-ended RF matrix switch, from
4x4 to 8x48
High performance RF matrix with non-blocking  full fanout capability or combining capability (with or without integrated amplifiers)
G2S78 NA 4 20-3000MHz SMA Single-ended RF matrix switch, from
4x8 to 12x16
High performance RF matrix with non-blocking  full fanout capability with integrated
G2R19 Download PDF file 8 DC-18GHz SMA or
N-Type
Single-ended microwave matrix switch, from
6x8 to 6x10
High performance microwave "blocking" bi-directional matrix capability, totally passive signal path
G2R19A NA 4 DC-18GHz SMA or
N-Type
Single-ended microwave matrix switch, from
4x2 to 10x10
High performance microwave "blocking" bi-directional matrix capability, totally passive signal path



Additional Information

NOTE: Universal Switching Corporation's policy is one of continuous product  development and improvement. Consequently, the company reserves the right to vary from the descriptions and specifications stated herein.
