The Series MCU1 is a high performance multicoupler product line that's available in various configurations (1x4, 1x8 & 1x16) as well as different frequency ranges. They are a rugged, cost effective and compact 1RU unit.
Designed from the ground up, the MCU1 delivers high performance RF distribution for today's growing competitive RF needs. They can be configured for unity gain, or with some other gain value to help you make up for cable losses or components elsewhere in your system architecture.
NOTE: Although it is available in standard configurations, the design construction makes it simple to build for custom performance or special requirements. Our technical staff can help configure the exact system to meet your specific application. Contact the factory.
Features
High performance cost-effective design
SMA or N-Type connectors (others available)
50 ohm impedance
High output isolation >55dB
Connectors on rear, front, or both
Rugged 1RU high chassis (1.75”)
Removable rack flanges for bench-top use
Convection cooled (no noisy fans)
International AC power range (DC optional)
Optional redundant power supplies
Rugged aluminum construction
Rubber feet included for benchtop use
Illuminated US logo for power indicator
Integrated 10-32 ground stud on rear
Certified CE EN61010 (LVD)
2-Year Warranty with 5-Year warranty available
Applications
Our MCU1 is designed to distribute signals spanning the 1.5MHz to 5.5GHz range. This unit can be used in combination with our switching systems to FanOUT specific signals instead of using other system outputs. The following installations may benefit from use of this product:
Automated test equipment (ATE)
Antenna patching
ENG trucks
Ground stations
Uplink or downlink antenna feeds
Communication centers
Satellite installations
Specialized security devices
Encryption and decryption equipment
1RU High Performance Multicouplers (active splitter)
HF, RF, IF, L, S, C-Band: 1.5MHz to 5,500MHz
The MCU1 multicoupler (active splitter) units provide a low cost, high performance RF signal distribution solution for a variety of signals up to 5.5GHz. They are available in 1x4, 1x8 and 1x16 configurations. Sometimes switching is not needed, but signals still need to be distributed to various destinations. This product delivers ultra-high signal performance coupled with rugged construction at an affordable price.

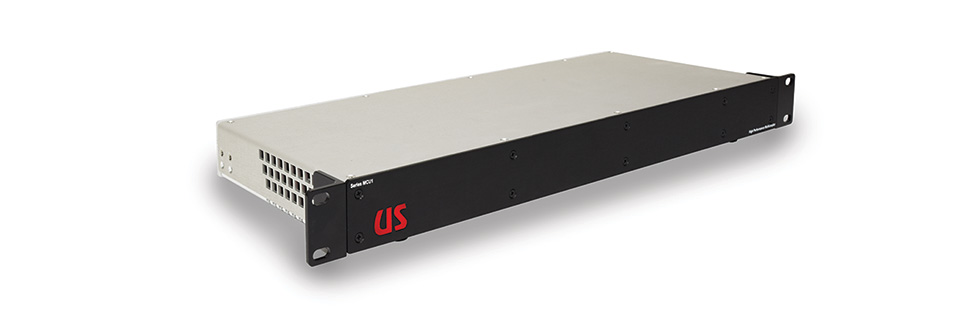

The units come with removable rack mount flanges, but can also has rubber feet for bench-top use. The flanges can be installed four different ways to provide installation flexibility. An optional cable restraint/support bracket is available as well.

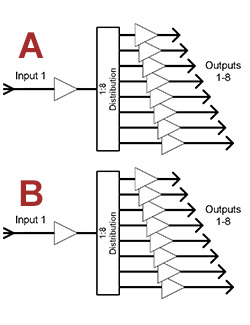

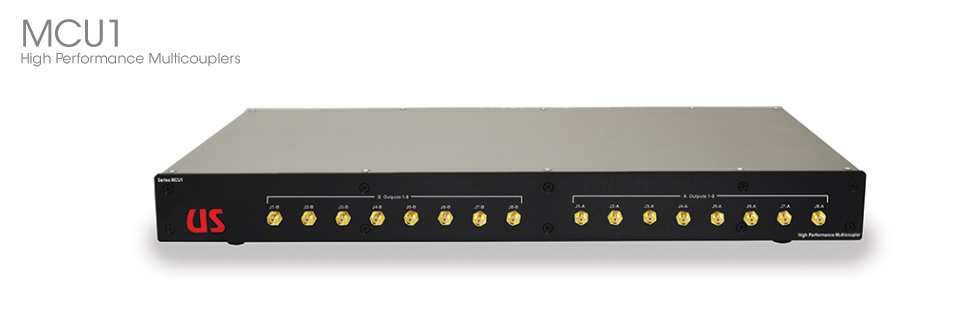

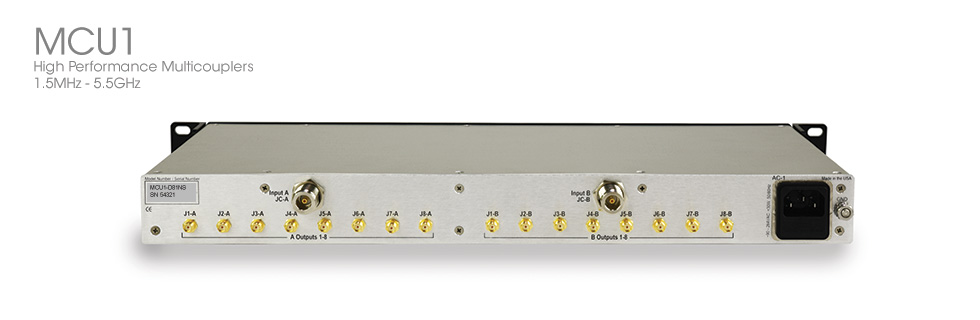

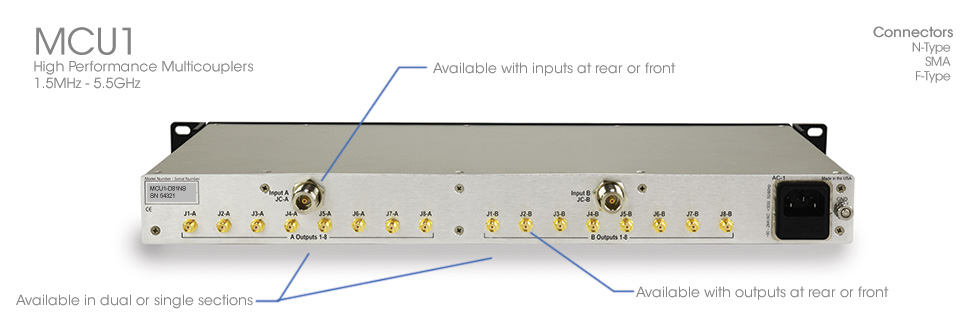

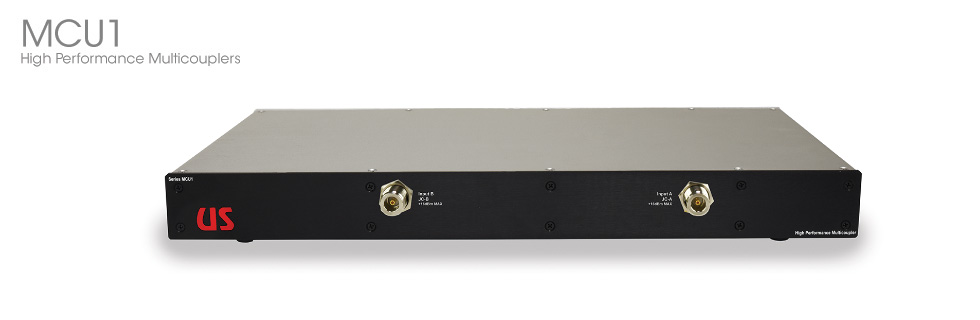

When ordering, the user can specify if there is one section or two, the input connector to be SMA or N-Type, the output connector to be SMA or N-Type, and the location of the I/O.
The unit has a single power supply with optional redundant supply available (AC or AC/DC). The unit's AC power input is designed for any international AC power source, and an optional wide-range DC power input is also available.
What's Included
The MCU1 units are delivered complete, 100% tested, and ready for installation & integration. The following items are included:
MCU1 product of your choice
One 6'-foot power cord
Resource disc (#RDMCU1)
Hardware accessory kit
Warranty registration card
Free lifetime technical support
Care should be given to the Resource Disc as this has all documentation and instructions. Electronic copies of the Operations Manual and Programmers Guide are included, as well as RouteWarePRO control and monitoring software with a 30-Day free trial.
