System RSX4 is a modular high reliability product specifically designed for redundancy switching in a 1RU package.

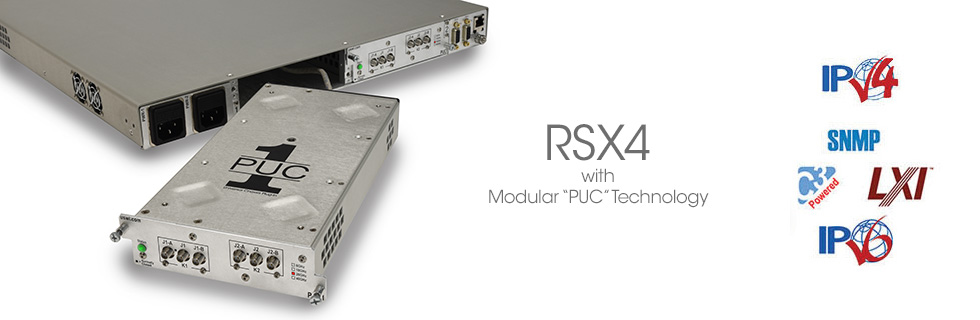

High value communication assets require redundant (backup) systems. The RSX4 redundancy switchers provide an automated method of providing this function. Under program control, manual, or direct alarm input, this unit provides redundancy switching for single, dual, or up to quad channels. Plug in elements (PUCs) are available for a variety of digital and analog signals including ASI, IF, L-Band and others up to 18GHz, and some options to 50GHz..

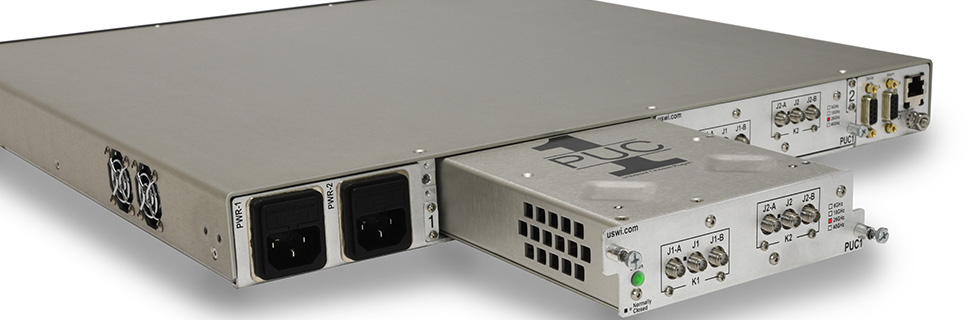

These PUC elements can also be located a distance from the main RSX4 chassis to minimize your signal cabling. Simply add an extension cable.

NOTE: Although it is available in standard configurations, the design construction makes it simple to build for custom or special requirements. Our technical staff can help configure the exact system to meet your specific application. Contact the factory.

Features

  • Ultra-High reliability relay technology
  • No distortion or gain issues
  • Up to four channels of A/B or transfer redundancy
  • Signals pass without power (most PUCs)
  • BNC or SMA and other signal connector types
  • Choice or 75 or 50 ohm
  • Digital and analog type UCs
  • Serial control port, 10/100 Ethernet
  • Web browser control panel
  • Field configurable serial port (232C/422A/485)
  • Some PUC's are auto-sense switching
  • Direct alarm input port
  • Dry contact port for failure alert

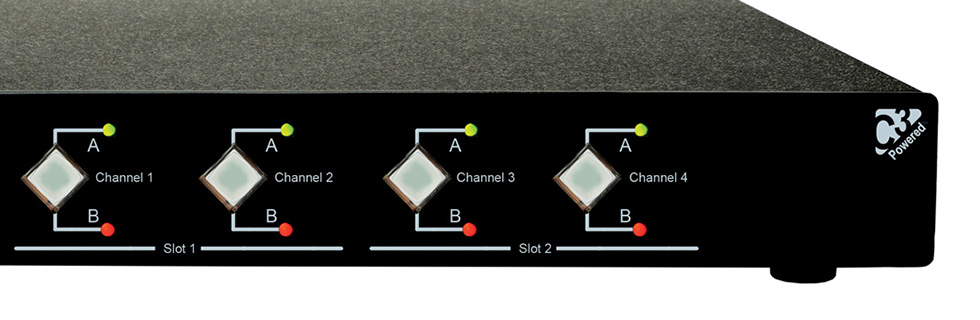

  • Front panel LED back-lit keys
  • High contrast LCD display
  • Modular 1RU high chassis (1.75”)
  • International AC power range (DC optional)
  • Self-monitoring power supplies
  • Integrated rack mount design (19 inch)

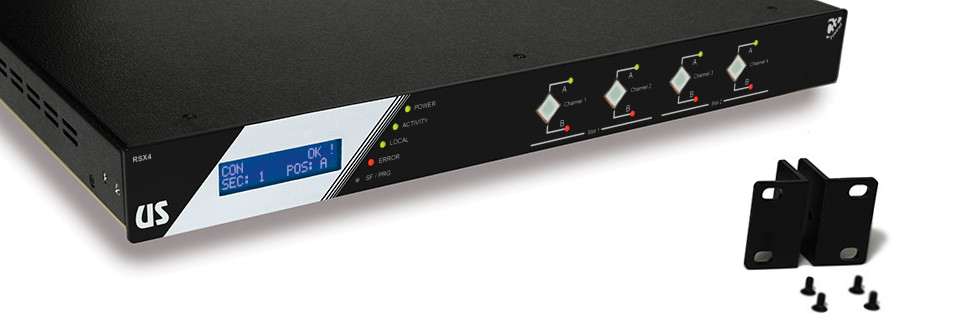

  • Cable retainer bracket included
  • Certified CE EN61010 (LVD)

    • Applications

    Our RSX4 is designed to automate connectivity coaxial signals spanning the DC-18GHz range. Rather than using patch cords, the following installations may benefit from use of this product:

  • Automated test equipment (ATE)
  • Antenna patching
  • ENG trucks
  • Ground stations
  • Telecom equipment
  • Uplink or downlink antenna feeds
  • Communication centers
  • Satellite installations
  • Specialized security devices
  • Encryption and decryption equipment

    • S24530 digital pin assignment DCE and DTE matrix system

    Similar Products

    Modular Redundancy Switching: Ultra Reliable
    1-8 Channels: ASI, IF, L-Band, DC-50GHz

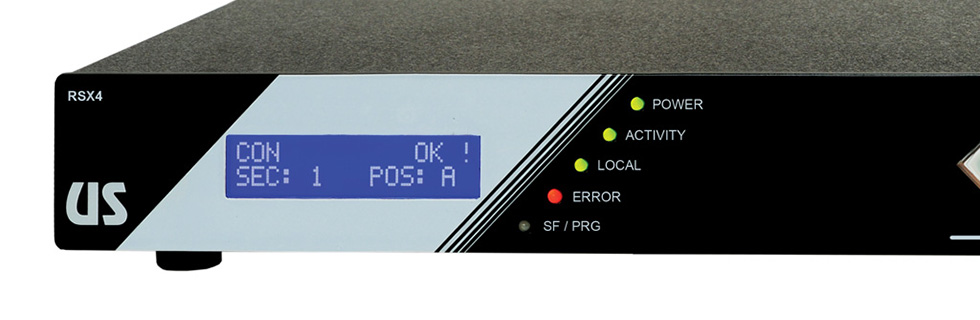

    RSX4 Redundancy closeup

    The RSX4 Redundancy Switch unit provides backup selections for signals as high as 50GHz, but designed typically for L-Band through X-Band signals. This product delivers ultra-high signal performance coupled with advanced remote/manual control and monitoring. Ethernet port, serial port, front panel control, and alarm input port, and auto-sense (on some PUC's) are all standard methods of control.

    Designed specifically for ENG trucks, critical installations, and for the general satellite/communications industry, the 1RU high rack mount unit can be controlled remotely, at the front panel, or direct alarm input. The unit provides redundancy switching for single, dual, or up to quad channels. Plug-ins are available for a variety of digital and analog signals including ASI, IF, L-Band and others up to 50GHz. Plug-ins can be mixed and matched as needed.

    The unit includes redundant power supplies with dual power inputs (AC or AC/DC). The manual controls may be locked to prevent unintentional operation. Self-monitoring power supplies are standard with an independent and redundant design. The unit has an international AC power input designed for any international AC power source, and an optional wide-range DC power input is available.

    Control Software & Drivers

    RouteWarePRO Control GUI

    What's Included

    The RSX4 units are delivered complete, 100% tested, and ready for installation & integration. The following items are included:

  • System RSX4
  • Two 6'-foot power cords
  • Resource disc (#RDRSX4)
  • Hardware accessory kit
  • Warranty registration card
  • Free lifetime technical support
  • Free lifetime firmware updates

    •

    Care should be given to the Resource Disc as this has all documentation and instructions. Electronic copies of the Operations Manual and Programmers Guide are included, as well as RouteWarePRO control and monitoring software with a 30-Day free trial.
