S5120F(X) Example Configurations

Versatile and flexible, the S5120FX unit is shown in various configurations below. Each is pictured using adapter panels for the I/O connections. These panels can be co-located with the system, located up to 60 feet away or a mix. It should be noted that a simple menu setting on the unit changes operation from stand alone, to be logically split in half (dual 256x256), or a part of a larger configuration.

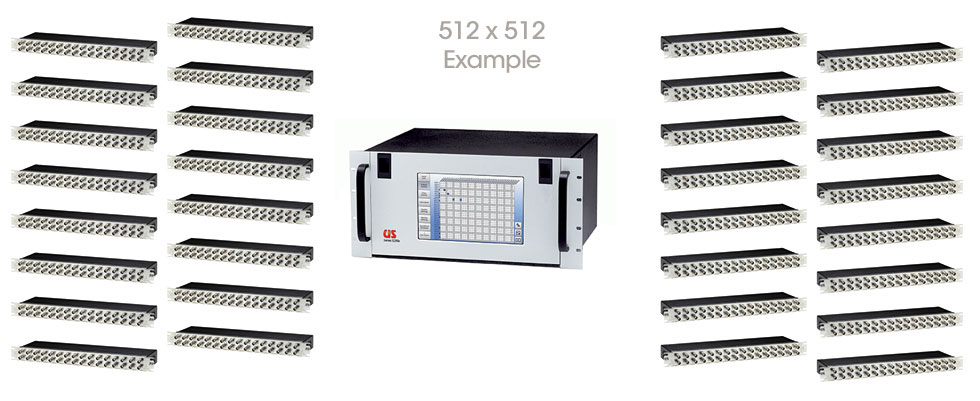

Example 1: Single S5120FX full configuration as 512x512 (or dual 256x256)

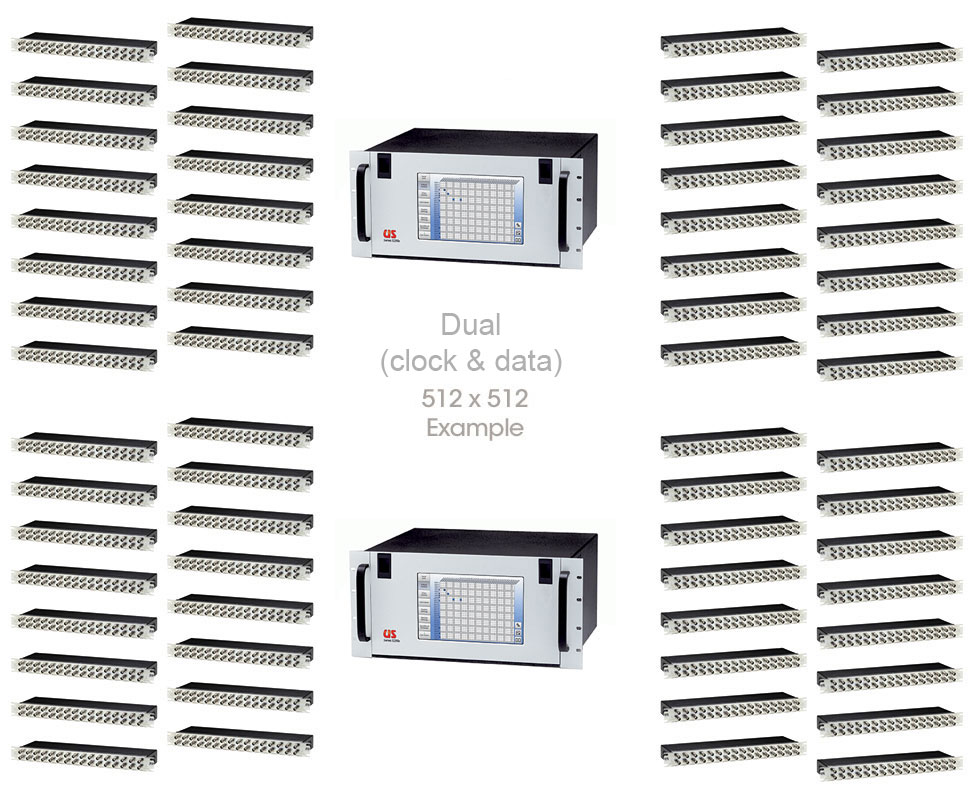

Example 2: Shows a fully functional Dual (Clock & Data - synchronous) 512x512 configuration

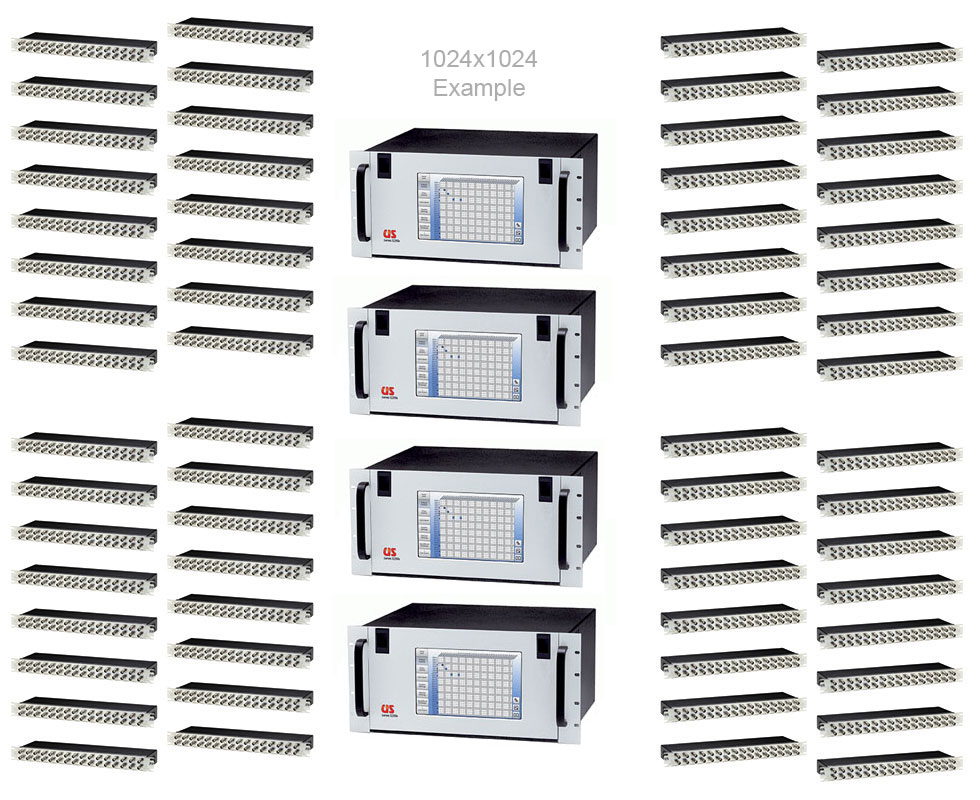

Example 3: This is a full 1024x1024 for applications.
