System S2084B:
High Density Modular Switching System

High performance and expandable, the second generation S2084B offers a tremendously flexible architecture for high density 19" rack mounted switching configurations. A total of twenty rear-facing module slots are available to install a growing number module types. Various types of inner backplane configurations are used to deliver a total system configuration by interconnecting the modules internally through the backplane.

A total of four remote interface slots are also available to install a combination of interface types to control the system. This includes GPIB (IEEE-488), Serial types (RS-232C, RS-422A, RS-485) or Ethernet control. Any single or multiple interface type may be installed.

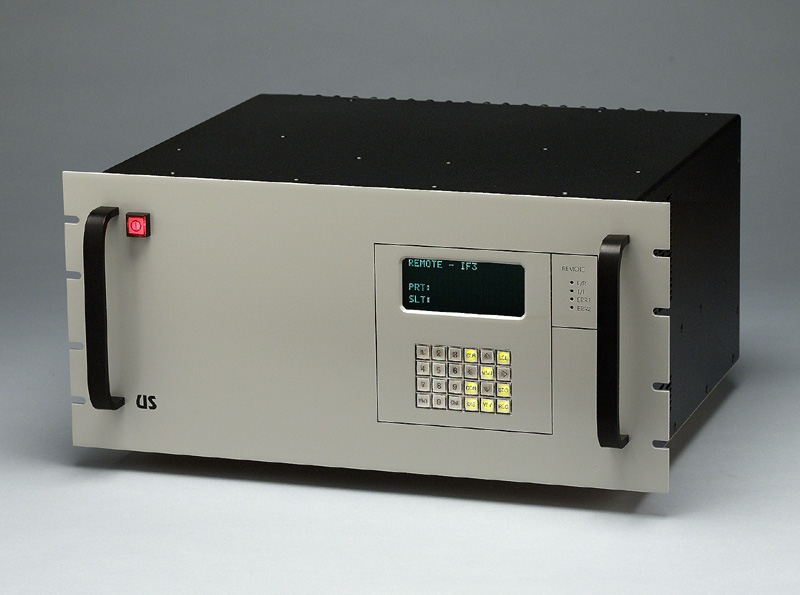

Front view of the S2084B system (large view).

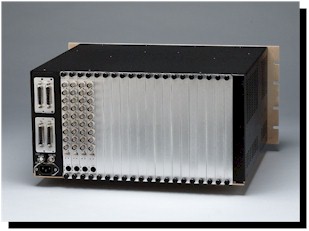

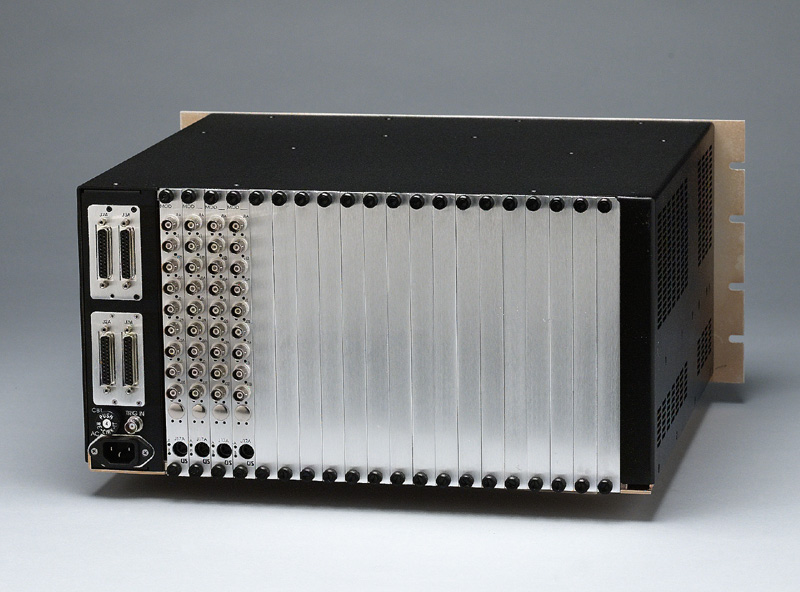

Rear view of typical System S2084B unit with four
modules, dual serial controls (large view)



Main Features

NOTE: Universal Switching Corporation's policy is one of continuous product  development and improvement. Consequently, the company reserves the right to vary from the descriptions and specifications stated herein.
