The S2565F switching system is a hybrid digital & analog full featured non-blocking full fan-out matrix for routing both types of signals. The capacity is up to 64x64 I/O's in one unit, or up to 256x256 in multiple units.
Conceived to replace manual patch cord bays and distribution units, and protocol converters, this hybrid unit is designed for switching differential digital signals 50Mbps (422), single-ended TTL to 60Mbps (PCM) signals, and baseband analog signals to 125MHz at the same time.
By design, the S2565F can be easily configured to meet many needs, even as your needs change and evolve. The unit can be configured as small as a 8x8matrix, to as large as a 64x64 matrix within the same box by simply sliding in modules. Either the input or output axis of the matrix can be configured independently in increments of 8 ports. Our technical staff can help configure the exact system for your specific application.
Features
High reliability hybrid core technology
Redundant signal paths (Tri-Stage)
Routes digital signals to 60Mbps (TTL)
Input activity monitoring included (digital)
LED indicator next to each I/O port
High speed, low skew 422 drivers and receivers
Hot-swap module technology
Full access matrix with 1:1 connection or fanout
Expandable configuration from 8x8 to 64x64
Multi-unit expansion to 256x256
Configurable with single or dual control CPUs
Built-in web browser
Remote control Ethernet, USB & serial ports
LXI 10/100 Ethernet with TCP/IP, SNMP, IPv4, IPv6
Command set is 488.2 compliant
Front panel color touchscreen display (4.3")
Optional 10.1" display (FX)
Rugged 5RU chassis (8.75”)
International AC power range
Self-monitoring hot-swap plug-in power supplies
Integrated rack mount design (19 inch)
Built-in chassis slide mounting (slides not included)
Certified CE EN61010 (LVD)
Applications
Our S2565F is designed to automate connectivity of equipment with differential digital signals.
Rather than using patch cords or distribution amplifiers, the following installations may benefit from use of this product:
Eliminating manual patch bays, converters and cords, the System S2565F is a high-density hybrid switch array specifically designed for routing both digital data (422, TTL and PCM), and analog signals (DC-125MHz). Fully populated, this unit contains 64 input and 64 outputs where a given input can be connected to one, many or all 64 outputs (full fan-out non-blocking). Menu settings can configure the unit for dual port switching which might be desired for synchronous Clock/ Data routing for a dual 32x32 in a single unit.

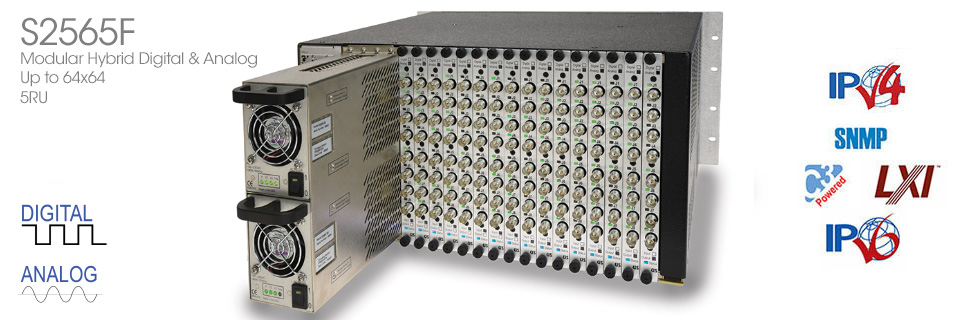

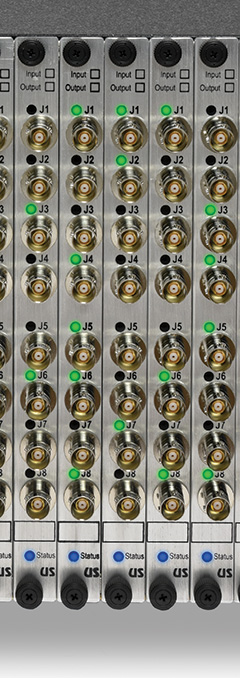

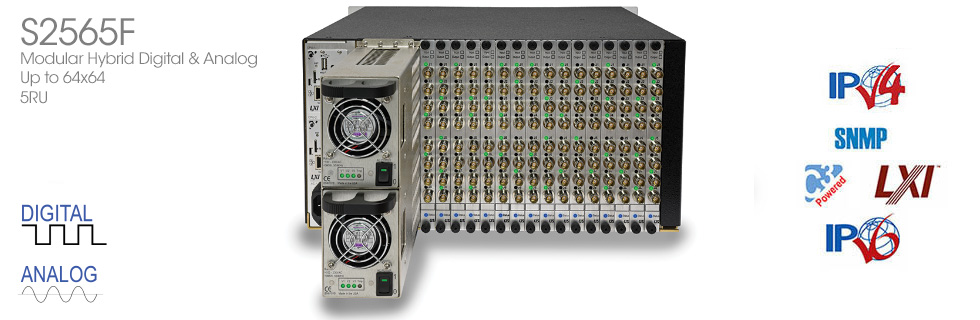

The 5RU rack mount unit accepts up to eight input cards and eight output cards at the rear with each I/O card having eight BNC's (TTL and Analog), or Triax (422) connectors. These cards install at the rear of the unit with the connectors rear facing. All cards are secured to the unit with stainless hardware for rugged and trouble free operation. For less than fully populated configurations, filler plates complete the user configuration to keep the fan assisted cooling system working at top efficiency. To complete the Tri-Stage configuration, mid-stage cards are installed behind the hinged front panel.
The front panel includes a color touchscreen display with user friendly menu driven operation. The "F" version has a 4.3" display while the "FX" includes a beautiful 10.1" display with additional X-Point control and display features. The display may be pass-code locked to prevent unintentional operation. The unit can be configured with one or two (full redundant) hot-swappable plug-in control CPUs. Each CPU includes an LXI 10/100 Ethernet port (with web browser), a USB 2.0 port, and a muli-serial port (RS-232C, RS-422A & RS-485). Self-monitoring hot-swap plug-in power supplies are standard with an independent and redundant design. The unit has independent dual AC power inputs designed for any international AC power source.
The table below shows how many channels are available based on the number of input or output cards installed. You can independently populate input and output sections.
Input Cards
Channels
Output Cards
Channels
1
8
1
8
2
16
2
16
3
24
3
24
4
32
4
32
5
40
5
40
6
48
6
48
7
56
7
56
8
64
8
64
What's Included
The S2565F units are delivered complete, 100% tested, and ready for installation & integration. The following items are included:
System S2565F
Two 6'-foot power cords
Resource disc (#RDS2565F)
Hardware accessory kit
Lifetime technical support
Free firmware updates
Two power cords are provided as the unit comes standard with redundant (and independent) power supplies. Care should be given to the Resource Disc as this has all documentation and instructions. Electronic copies of the Operations Manual and Programmers Guide are included, as well as RouteWarePRO control and monitoring software with a 30-Day free trial.
Universal Switching Corporation is an internationally recognized leader in the signal routing industry that manufactures leading-edge switching and distribution equipment.
Since 1992, the USC commitment to Continuous Process Improvement and cutting-edge technology has combined to provide a unique blend of low cost yet high quality products. With a corporate culture that includes a modern facility, talented personnel, a comprehensive Quality Management System and ISO 9001:2015 certification, USC provides a standard 2-Year warranty for all equipment and offers an optional extended 7-Year warranty.
