System S6025D:
Flexible Data/Analog Switching System
Up to 60x60 matrix with 25 wires (levels)

Download PDF file Specification Sheet

Designed for parallel switching of RS-232 data or other similar types of data, the S6025D delivers compact solid-state switching in an expandable configuration. The unit can start as a smaller size and be expanded later to a full 60x60 array with 25 levels, perfect for switching RS-232 type data. It provides a choice or a combination of remote control including RS-232C, RS-422A, RS-485, GPIB (IEEE-488) and Ethernet (10base-T).

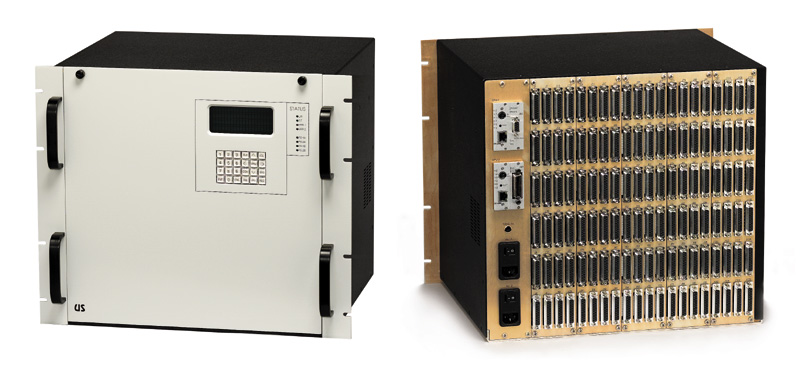

(large photo)

The user may connect up to sixty (60) individual data or analog inputs, each being up to 25 wires "wide". The word "wide" is used since there are 25 levels or "wires" of switching provided. Another definition is that the unit may be configured as a "60 input x 60 output x 25 pole" switch. Each switching module installed in the system provides a "wire" or pole of switching. The number of I/O modules installed determines the total number of inputs or outputs included in the system. You can start smaller and install additional modules as your requirement changes.   The sex or type of the module's I/O connectors are determined by the module number definition.

Due to the extremely high switching density of the system, the unit is designed with solid-state switching elements. This also provides excellent reliability and repeatability. When used for data switching (such as RS-232C), bit-errors are virtually non-existent since the unit passes the data from input to output without processing the data (analog data path) such as the case with Time Multiplexed Switching units.

Main Features

  • Ultra-compact size
  • Solid-state crosspoints
  • Hot-Swap module technology
  • Low cost per crosspoint
  • Digital or analog signal path
  • High reliability and quality
  • Multi-level switching architecture
  • Advanced control and status features
  • Redundant power supplies and CPU available



NOTE: Universal Switching Corporation's policy is one of continuous product  development and improvement. Consequently, the company reserves the right to vary from the descriptions and specifications stated herein.
