System S6400D:
Flexible Switching System
From 8x8, Up to 64x64
DC-65MHz

Specification Sheet

High performance and expandable, the third generation S6400D offers coaxial switching configurations as small as 8x8 and can be expanded to a full 64x64. Simply install more modules in the field.  Configurable for Video, RF, IF, Data and many other types of signals.

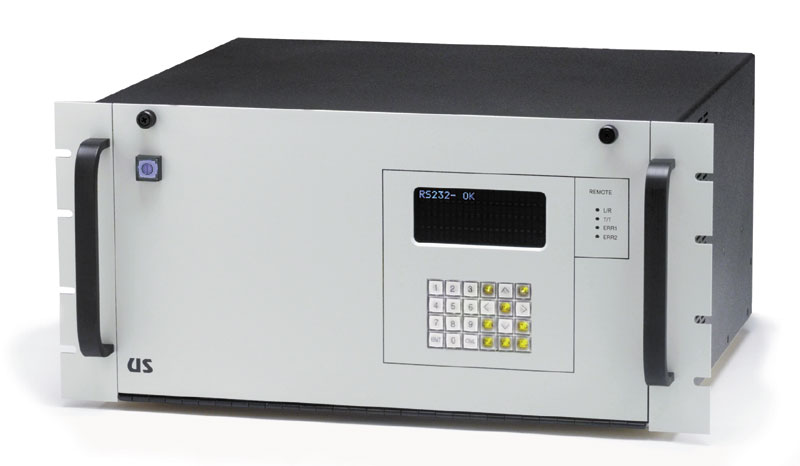

Front view of S6400D system
(large photo).

Main Features

• Compact size
• Solid-state crosspoints
• Hot-Swap module technology
• Low cost per crosspoint
• High reliability and quality
• Redundant signal paths (Tri-Stage design)
• Advanced control and status features
• Redundant power supplies included

This unit is available with different signal
performance features:

• DC coupled:
  Versions for NTSC, PAL or other types of video, T3 or similar data signal types

• Low-Level AC coupled:
  For lower noise routing of RF antennas or other types of low level communication signals up to -5dBm. Available in 50 or 75 ohm versions.

• High-Level AC coupled:
  For higher signal types like IF modulators and similar signals with a maximum of +13dBm. Available in 50 or 75 ohm versions.
