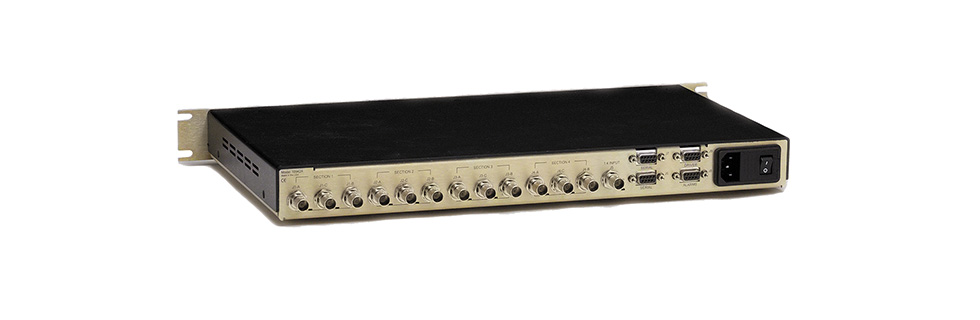

10942b redundancy switch for IF and RF 10942b redundancy switch ethernet AC input 10942b redundancy unique 1:4 switch 10942b redundancy dual mode unique 1:1 switch>

Model
10942B

The Model 10924B redundancy switcher is considered the "gold-standard" for automated back-up switching for both digital and analog signals up to 800MHz.

Critical applications such as in satellite broadcast or military require redundant (backup) systems. Our redundancy switchers provide an automated method of providing this function. Under program control, manual, or direct alarm input, this unit provides either 1:1 backup or 1:4 (one backup unit for every four).

Features

  • Ultra-High reliability relay technology
  • No distortion or gain issues
  • Four channels of A/B redundancy
  • Signals pass without power
  • BNC signal connectors
  • Choice or 75 ohm (standard) or 50 ohm
  • Routes both digital (ASI) or analog signals to 800MHz
  • Cost saving dual mode 1:4 or 1:1 backup switching
  • Dual serial control ports, or one serial & one Ethernet
  • Field configurable serial ports (232C/422A/485)
  • Dry contact direct alarm input port (with indicators)
  • Programmable driver output port for external devices
  • Rear panel indicator status LEDs
  • Front panel LED back-lit keypad controls
  • High contrast vacuum-fluorescent display
  • Rugged 1RU high chassis (1.75”)
  • International AC power range (DC optional)
  • Self-monitoring hot-swap plug-in power supplies
  • Integrated rack mount design (19 inch)
  • Certified CE EN61010 (LVD)
  • Applications

    Our 10942B is provides automated redundancy switching of equipment with single-ended digital or analog signals to 800MHz.

    Rather than using patch cords, distribution amplifiers and multi-couplers, the following installations may benefit from use of this product:

  • Broadcast centers
  • ENG vans and trucks
  • Telemetry sites
  • Tracking and test bases
  • Satcom ground stations
  • Telecom installations
  • Communication centers
  • Weapons testing centers
  • Satellite installations

  • 10942b redundancy backup switch

    Similar Products

    Four Channel DC-800MHz Redundancy Switch
    RF, IF, P-Band and ASI Signals

    10942b redundancy unique 1:4 switch

    Detailed Description

    The 10942B Redundancy (backup) Switching System provides backup selections for signals as high as 800MHz, digital ASI video signals, or both. This product delivers ultra-high signal performance coupled with advanced remote/manual control and monitoring. Dual serial ports, or Ethernet and a single serial port configurations are available.

    Designed specifically for ENG trucks, and for the general satellite/communications industry, the 1RU high rack mount unit provides the user with normal through paths for four channels of IF signals (four in and four out). Under front panel, remote serial control, Ethernet or direct alarm input control, the unit can select a backup signal to replace a suspect input signal. This unit is considered the "gold standard" for redundancy switching with over 2000 units deployed in the field and 0.0015% failures to date.

    Redundancy costs can be significantly reduced by utilizing the unit's 1:4 mode where a single backup unit can be switched in for any of the four channels. This redundancy method basically cuts your redundancy costs by 75%. User programmable "priority" setting specifies the order of backup priority for the single backup.

    Besides the hot-swap power supplies at the front panel, it also includes a VF display, manual keys for local control and a host of status LEDs. The manual controls may be locked to prevent unintentional operation. Self-monitoring hot-swap plug-in power supplies are standard with an independent and redundant design. The unit has an international AC power input designed for any international AC power source, and an optional wide-range DC power input is available.



    What's Included

    The 10942B units are delivered complete, 100% tested, and ready for installation & integration. The following items are included:

  • Model 10942B 1RU unit
  • One 6'-foot power cord
  • Resource disc (#RD10942B)
  • Hardware accessory kit
  • Warranty registration card
  • Lifetime technical support
  • Free firmware updates
  •

    Care should be given to the Resource Disc as this contains all documentation and instructions. Electronic copies of the Operations Manual and Programmers Guide are included, as well as RouteWarePRO control and monitoring software with a 30-Day free trial.
