System
SFM32

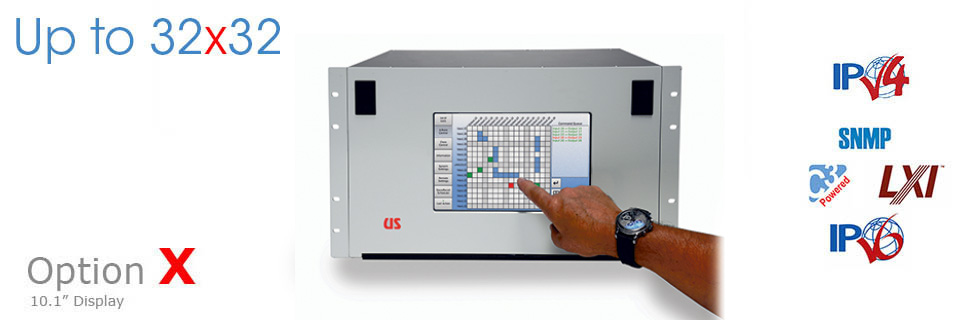

The SFM32 (850-2450MHz) is a modular L-Band FIFO switching system that is designed to Fan-IN (combine) and Fan-OUT (distribute) signals at the same time, and up to 32x32 in a single 6RU unit. The unit also supports expansion to 64x64 by adding more hardware to the configuration. The SFM32X is the same unit but includes our larger Option X touchscreen display.

Field configurable from a small 4x4 to as large as a 32x32, it is designed to replace and automate a set of multi-coupler and manual patch cord bays or switches. The input and output axis can be populated in single channel increments independently as needed.

These units are also now available in C-Band, X-band, and Wideband configurations. Our technical staff can help configure the exact system for your specific application. See the SWM32 for more details.



Features

  • High reliability GaAs switch technology
  • Individual hot-swap I/O blade design
  • Choice of SMA, BNC or F-Type connectors
  • Full FIFO matrix with fan-in & fan-out
  • Expandable configuration from 4x4 to 32x32
  • Configurable with single or dual control CPUs
  • Remote control Ethernet 10/100 ports
  • Certified LXI 10/100 Ethernet
  • Includes TCP/IP, SNMP (v1,/v2),SNTP, IPv4, IPv6
  • Command set is 488.2 compliant
  • Built-in web browser capability
  • Compatible with RouteWarePRO
  • High brightness touchscreen
  • Optional 10" display (Option X)
  • Variable gain (programmable)
  • Rugged 6RU high chassis (10.50”)
  • International AC power range
  • Self-monitoring hot-swap plug-in power supplies
  • Optional redundant LNB supply
  • Integrated rack mount design (19 inch)
  • Removable front flanges
  • Illuminated front and rear blade bays
  • Built-in chassis slide mounting (slides not included)
  • Certified CE EN61010 (LVD)
  • Applications

    Our SFM32 (SFM32X) is designed to automate connectivity of L-Band signals in applications such as ground stations. Rather than using patch cords and multi-couplers, the following installations may benefit from use of this product:

  • Satellite ground stations
  • Uplink or downlink control signals
  • Teleport and last mile installations
  • Communication centers
  • Satellite installations
  • Specialized security installations
  • Modem Tx and Rx connectivity and encryption

  • S24530 digital pin assignment DCE and DTE matrix system

    Similar Products

    L-Band 32x32 Modular FIFO Switching System
    FIFO (Fan-IN & Fan-OUT): 850-2450MHz

    SFM32 rear panel detail L-band matrix system

    Detailed Description

    Eliminating many multi-couplers, manual patch bays and patch cords, the System SFM32 is a solid-state modular FIFO switch array specifically designed for routing L-Band signals. Fully populated, the unit provides 32 input ports and 32 output ports. The FIFO capability allows input signals to be combined to a given ouput (Fan-IN), and also distribute inputs to multiple outputs (Fan-OUT) at the same time.

    The unit is configurable from as small as 4x4 to 32x32 in independent increments of one input channel, or one output channel. Multiple units can be used to build configurations of 64x64. This design allows isolated failure capability. Should an I/O blade experience damage from excess signal levels, it will only affect that individual port and not a bank of channels.

    The 6RU rack mount unit can be populated with up to thirty-two input blades and thirty-two output blades. The input blades install at the hinged rear of the unit while the output blades install at the front (behind the hinged front panel). All blades are secured within the unit for rugged and trouble free operation.

    The front panel includes a touchscreen display with menu driven operation. The screen may be pass-code locked to prevent unintentional operation. The unit can be configured with one or two (full redundant) hot-swappable plug-in control CPUs.

    Each CPU includes an LXI 10/100 Ethernet port (with web browser), and a microSD memory slot for high security installations. Self-monitoring hot-swap plug-in power supplies are standard with an independent and redundant design. The unit has independent dual AC power inputs designed for any international AC power source. A third supply can be added for redundant LNB powering if required. The LNB option can also be used to power our single-port FiberSTIK fiber-optic receivers. The unit is also compatible with RouteWarePRO control software.

    Control Software & Drivers

    Plug-in C3 Control CPU Information

    RouteWarePRO Control GUI





    What's Included

    The SFM32 units are delivered complete, 100% tested, and ready for installation & integration. The following items are included:

  • System SFM32
  • Two 6'-foot power cords
  • Resource disc (#RDSFM32)
  • Hardware accessory kit
  • Warranty registration card
  • Free lifetime technical support
  • Free lifetime firmware updates
  •


    Two power cords are provided as the unit comes standard with redundant (and independent) power supplies. Care should be given to the Resource Disc as this has all documentation and instructions. Electronic copies of the Operations Manual and Programmers Guide are included, as well as RouteWarePRO control and monitoring software with a 30-Day free trial.
