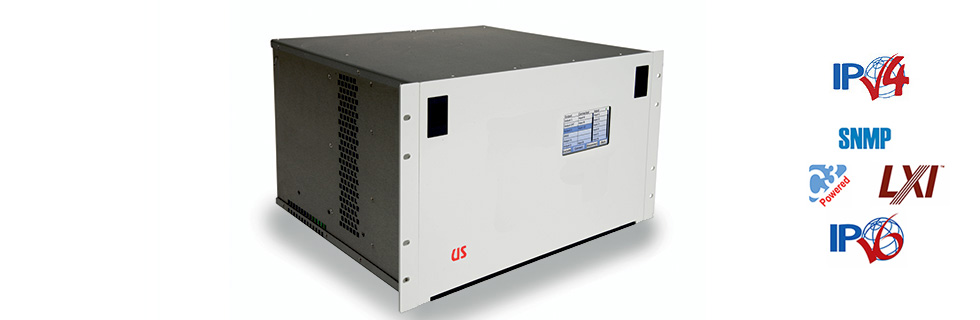

SLM32(i)

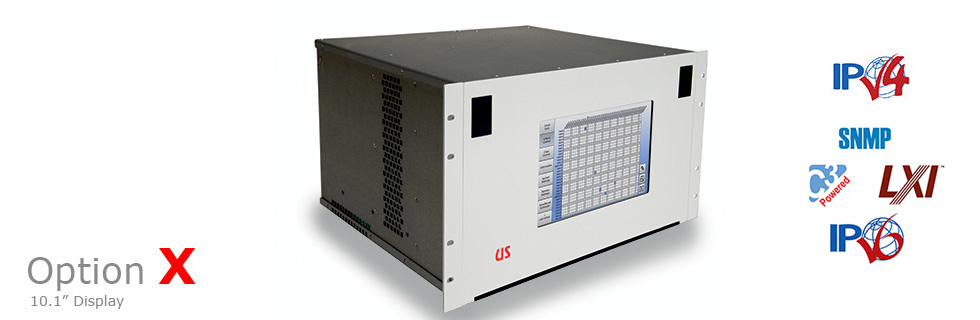

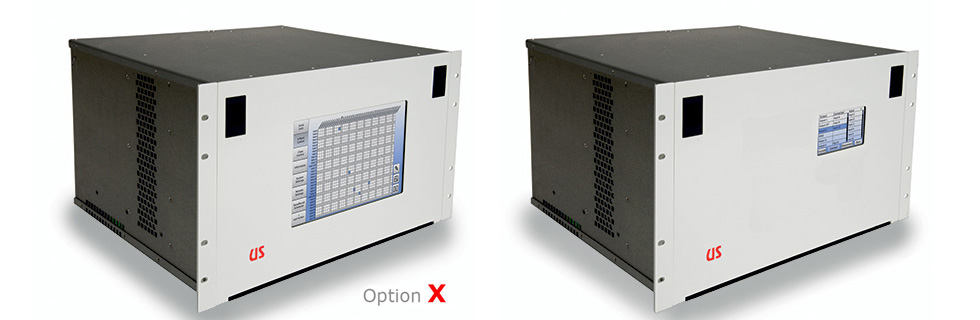

The SLM32 (850-2450MHz) is a modular L-Band switching system that can be factory configured for Fan-OUT (SLM32) or Fan-IN (SLM32i) signal routing, and up to 32x32 in a single 6RU unit. The unit also supports expansion to 64x64, or even 128x128 by adding more hardware to the configuration. The SLM32X is the same unit but includes our larger Option X touchscreen display.

Need something even larger? See our System SLX128
L-Band with 128x128 configuration.

Field configurable from a small 4x4 to as large as a 32x32, it is designed to replace and automate a set of multi-coupler and manual patch cord bays or switches. The input and output axis can be populated in single channel increments independently as needed.

The unit is available in a distributive Fan-OUT version (SLM32) or a combining Fan-IN version (SLM32i). These units are also now available in C-Band, X-band, and Wideband configurations. Our technical staff can help configure the exact system for your specific application. See the SWM32 for more details.



Features

  • High reliability GaAs switch technology
  • Individual hot-swap I/O blade design
  • Choice of SMA, BNC or F-Type connectors
  • Full access matrix with fan-in or fan-out
  • Expandable configuration from 4x4 to 32x32
  • Configurable with single or dual control CPUs
  • Remote control Ethernet 10/100/1G port(s)
  • LXI certified Ethernet
  • Includes TCP/IP, SNMP (v1,/v2C/v3),SNTP, IPv4, IPv6
  • Multi-serial control port(s) with 232/422/485
  • Command set is 488.2 compliant
  • Built-in web browser capability
  • Compatible with RouteWarePRO
  • High brightness touchscreen
  • Optional 10" display (Option X)
  • Variable gain (programmable)
  • Rugged 6RU high chassis (10.50”)
  • International AC power range
  • Self-monitoring hot-swap plug-in power supplies
  • Optional redundant LNB supply
  • LNB option compatible with FiberSTIK
  • Integrated rack mount design (19 inch)
  • Removable front flanges
  • Illuminated front and rear blade bays
  • Built-in chassis slide mounting (slides not included)
  • Certified CE EN61010 (LVD)

    • Applications

    Our SLM32 (SLM32X) is designed to automate connectivity of L-Band signals in applications such as ground stations. Rather than using patch cords and multi-couplers, the following installations may benefit from use of this product:

  • Satellite ground stations
  • Uplink or downlink control signals
  • Teleport and last mile installations
  • Communication centers
  • Satellite installations
  • Specialized security installations
  • Modem Tx and Rx connectivity and encryption

    • S24530 digital pin assignment DCE and DTE matrix system

    Similar Products

    L-Band 32x32 Modular Switching System
    Fan-OUT or Fan-IN: 850-2450MHz

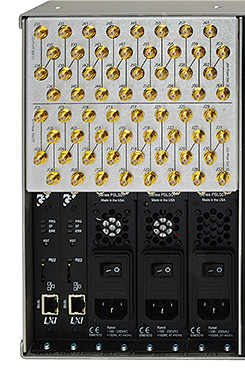

    SLM32 rear panel detail L-band matrix system

    Detailed Description

    Eliminating multi-couplers, manual patch bays and patch cords, the System SLM32 is a solid-state modular switch array specifically designed for routing L-Band signals. Fully populated, the unit provides 32 input ports and 32 output ports. The unit is configurable from as small as 4x4 to 32x32 in independent increments of one input channel, or one output channel. Multiple units can be used to build configurations of 64x64, or even up to 128x128. This design allows isolated failure capability. Should an I/O blade experience a failure, it will only affect that individual channel and not a bank of channels.

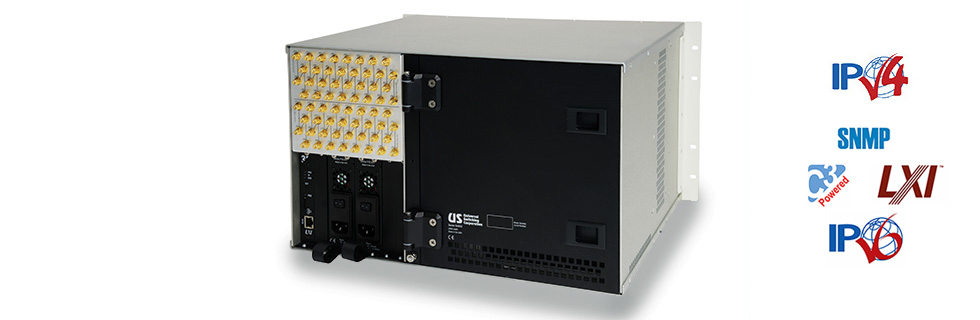

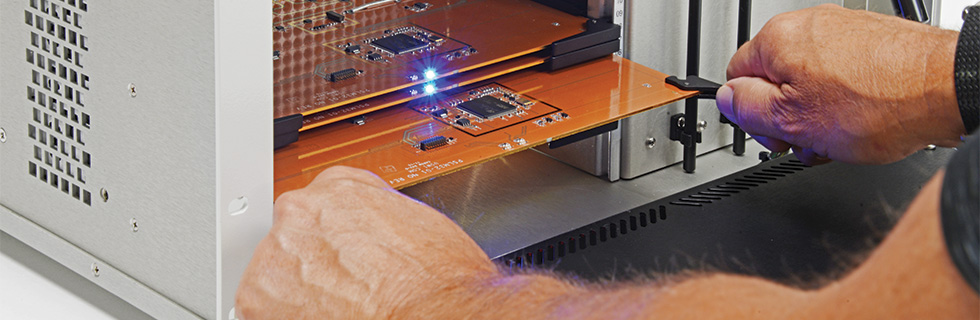

    The 6RU rack mount unit can be populated with up to thirty-two input blades and thirty-two output blades. For the SLM32 version, the input blades install at the hinged rear of the unit while the output blades install at the front (behind the hinged front panel). All blades are secured within the unit for rugged and trouble free operation.

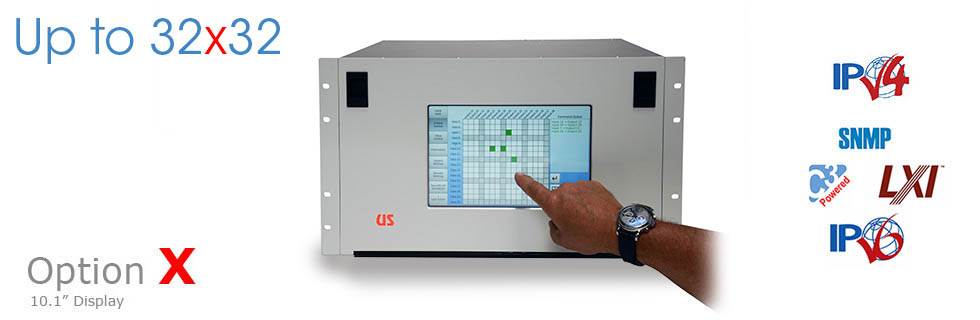

    The front panel includes a touchscreen display with menu driven operation. The screen may be pass-code locked to prevent unintentional operation. The unit can be configured with one or two (full redundant) hot-swappable plug-in control CPUs.

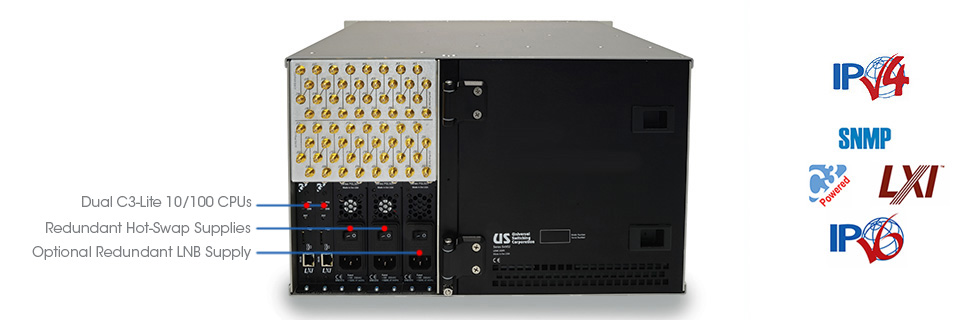

    Each CPU includes an LXI 10/100/1G Ethernet port (with web browser), a multi-serial control port (RS-232/422/485) and a microSD memory slot for high security installations. Self-monitoring hot-swap plug-in power supplies are standard with an independent and redundant design. The unit has independent dual AC power inputs designed for any international AC power source. A third supply can be added for redundant LNB powering if required. The LNB option can also be used to power our single-port FiberSTIK fiber-optic receivers. The unit is also compatible with RouteWarePRO control software.

    Control Software & Drivers

    Plug-in C3 Control CPU Information

    RouteWarePRO Control GUI





    What's Included

    The SLM32 units are delivered complete, 100% tested, and ready for installation & integration. The following items are included:

  • System SLM32
  • Two 6'-foot power cords
  • Resource disc (#RDSLM32)
  • Hardware accessory kit
  • Warranty registration card
  • Free lifetime technical support
  • Free lifetime firmware updates

    •


    Two power cords are provided as the unit comes standard with redundant (and independent) power supplies. Care should be given to the Resource Disc as this has all documentation and instructions. Electronic copies of the Operations Manual and Programmers Guide are included, as well as RouteWarePRO control and monitoring software with a 30-Day free trial.
